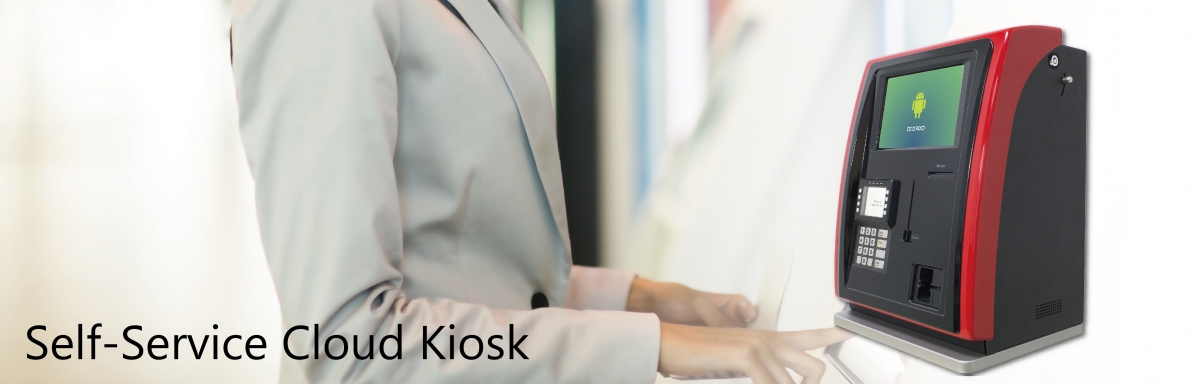

Self-Service Cloud Kiosk
XAC Self-Service Cloud Kiosk which is based upon Android platform with various payment solutions can be configured flexible for various unattended service applications.
► PCI PTS 3.x Certification module for secure PIN entry, TCP/IP connectivity, and Secure Hybrid Reader
► Secure Read and Exchange of Data (SRED) supported
► IK07 Vandalism Protection
► Android 6.0 OS with multi-application support on 10.1" touch panel.
► Integrated PIN pad, NFC/contactless reader
► Global Security compliant design meets APCA, GBIC, and CC requirements (Payment Modules)
► Global Regulatory compliant design meets CE, FCC and CB scheme
► PCI PTS 3.x Certification module for secure PIN entry, TCP/IP connectivity, and Secure Hybrid Reader
► Secure Read and Exchange of Data (SRED) supported
► IK07 Vandalism Protection
► Android 6.0 OS with multi-application support on 10.1" touch panel.
► Integrated PIN pad, NFC/contactless reader
► Global Security compliant design meets APCA, GBIC, and CC requirements (Payment Modules)
► Global Regulatory compliant design meets CE, FCC and CB scheme
#restaurant
#gaspump
#parkingmeter
#bank
#vendingmachine
#billpaymentkiosk
#gaspump
#parkingmeter
#bank
#vendingmachine
#billpaymentkiosk
| CPU | ARM A9; 1GHz |
| OS | Android 6.0 |
| Memory | 1GB DDR3 SDRAM 4GB eMMC Memory |
| Display | 10.1" TFT Projected capacitive multi-touch panel |
| Encrypted PinPad | 4x4 Metallic Keys |
| Printer | 2” thermal printer with tear bar |
| Magnetic Card Reader | Integrated in Hybrid reader ISO 7811 compliant 3-track MSR Support SRED |
| Smart Card Reader | EMV L1 & L2 Contact Support T=0 & T=1 type 1.8V/3.3V/5V available |
| Contactless Card Reader | Integrated with Encryption PIN Pad module |
| Barcode Reader | 1D /2D barcode scanner |
| Audio | Audio Speaker 2W |
| Wireless Communication | WiFi Bluetooth |
| Peripheral Ports | USB host*4 RS232*1 Ethernet*1 |
| Security | TLS 1.2 support Secure code update architecture PCI PTS (SRED) (Payment Modules) |
Compliance Approvals
- PCI-PTS 3.1 (SRED)
- EMV L1 & L2 Contact
- EMV L1 Contactless
- PayWave, PayPass, ExpressPay, DPAS
- NFC (ISO 18092)
Regulatory Approvals
- CB
- FCC
- CE
- PCI-PTS 3.1 (SRED)
- EMV L1 & L2 Contact
- EMV L1 Contactless
- PayWave, PayPass, ExpressPay, DPAS
- NFC (ISO 18092)
Regulatory Approvals
- CB
- FCC
- CE
