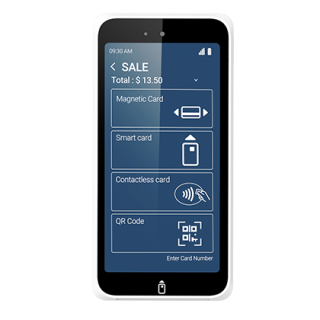

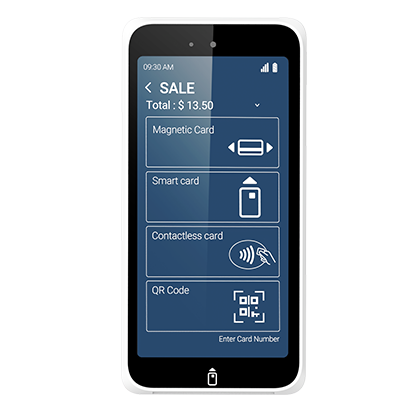

AT160EL (2)-new

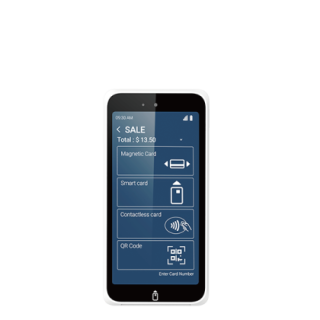

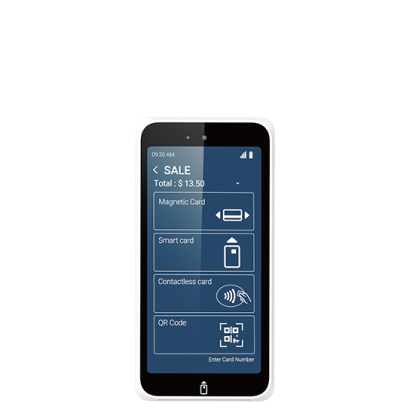

AT160EL

Sharing the same slim and modern design language, the AT160EL features a thin profile and a 6-inch LCM, offering a streamlined SmartPOS solution focused on aesthetics and space efficiency. Certified to PCI 6, it is well suited for environments where elegant design and display size contribute to the overall point-of-sale experience.

FEATURES

  • Slim and space-efficient SmartPOS
  • Powered by Android 12
  • 6” touch display
  • PIN on glass technology
  • Chip & PIN + contactless + magnetic stripe
  • Refined design for modern POS counters
  • Suitable for attended payment deployments
  • PCI PTS 6.x

APPLICATIONS

  • Fashion & Lifestyle Retail

  • Food & Beverage

  • Specialty & Chain Stores

  • Mobile  Payments

  • Value-Added Payment Applications

CERTIFICATIONS

Security & Payment
  • PCI PTS 6.x with SRED
  • GBIC, and CC compliant
  • EMV Contact L1 & L2
  • EMV Contactless L1
  • PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy,Unionpay
  • Mastercard TQM
  • Sony Felica

Safety

  • CE/FCC/CB/cTUVus
  • ROHS/WEEE/REACH

OPTIONAL PERIPHERALS

  • Docking Base
  • Holster
  • Silicone Protective Case

CPU - Qualcomm ARM Cortex-A53 quad-core 64bit(QCM2290) up to 2.0GHz
- Secure: MAXIM ARM Cortex-M3 SoC
OS - Android 12
Memory

- 2 GB SDRAM +16 GB eMMC

- 3 GB SDRAM +32 GB eMMC (Optional)

- 4 GB SDRAM +64 GB eMMC (Optional)
Display - 6” 1440x720 pixel TFT display
- Capacitive touch screen display
- Auto-adjustable brightness (Optional)
PINPad - Touch PINPAD
SAM/SIM Card Slot - 1 SIM
MSR - ISO 7811 compliant 3-track MSR
SCR - ISO7816-1/2/3 asynchronous T=0, T=1
- SLE4442 Memory Card
CTLS - ISO14443 type A/B
- ISO18092 (NFC)
- MiFare
- Felica
Barcode Reader / Camera - Front: 5MP Fix-Focus camera (Optional)
- Top: 5MP Auto-Focus camera, flash LED (upgradable to 8MP camera)
- Support 1D/2D barcode scanning (Optional)
Wireless Communication - WI-FI 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
- Bluetooth 5.0 Dual Mode
- 4G LTE
Peripheral Ports - USB Type C Connector x 1
- Charge port x1 (pogo pin type)
Power Supply - DC 5V/2A
Battery Capacity - 7.6V / 2500mAH rechargeable Li-ion battery
Dimension (mm) - 172.8 (L) x84.6 (W) x 19.8 (H) mm
Environmental - Operating Temperature: 0°C to 50°C
- Battery Charging Operating Temp.: 0°C to 45°C
- Storage Temperature: - 20°C to 60°C
- Operating Humidity: 5% to 85% (non-condensing)
Download Datasheet
