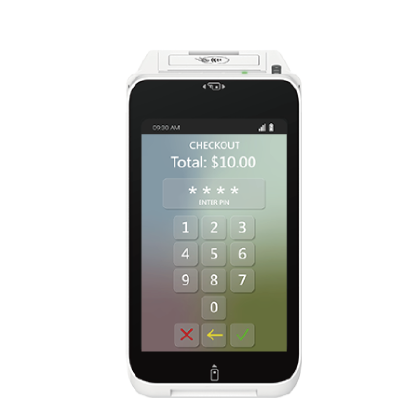

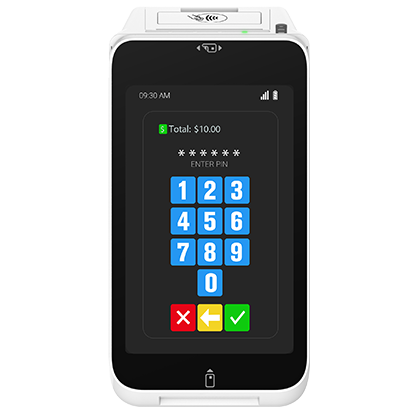

AT170E
The AT170E represents XAC’s next-generation SmartPOS with a larger 7-inch LCM that also enables its use as a compact ECR POS solution. Certified to PCI 6, it supports richer payment and POS applications, making it suitable for merchants seeking an integrated payment and checkout experience in a single device.
FEATURES
- Large-screen SmartPOS with ECR POS capability
- Powered by Android 12
- 7” touch display
- PIN on glass technology
- Chip & PIN + contactless + magnetic stripe
- Supports richer payment and POS interaction
- Suitable for integrated checkout environments
- PCI PTS 6.x
APPLICATIONS
-
Fashion & Lifestyle Retail
-
Food & Beverage
-
Specialty & Chain Stores
-
Mobile & Countertop Payments
-
Value-Added Payment Applications
CERTIFICATIONS
Security & Payment
- PCI PTS 6.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Contactless Payment Scheme:
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy
- Other local payment schemes are optional
- Mastercard TQM
- SonyFelica
Safety
- CE/FCC/CB/cTUVus
- ROHS/WEEE/REACH
OPTIONAL PERIPHERALS
- Handheld Strap
| CPU/SoC | - Qualcomm ARM Cortex-A53 quad-core 64bit(QCM2290) up to 2.0GHz - Secure:MAXIM ARM Cortex-M3 SoC |
| OS | - Android 12 |
| Memory | - 2 GB SDRAM +16 GB eMMC - 3 GB SDRAM +32 GB eMMC (Optional) - 4 GB SDRAM +64 GB eMMC (Optional) |
| Display | - 7” 1280x720 full color TFT IPS - Capacitive touch screen display |
| PINPad | - Touch PINPAD |
| Printer | - 48 mm printing width with tear bar - 34 mm diameter paper roll |
| Audio | - Audio Jack and Microphone |
| MSR | - ISO 7811 compliant 3-track MSR |
| SCR | - ISO7816-1/2/3 asynchronous T=0, T=1 - SLE4442 Memory Card - Support 2 SAM slots |
| CTLS | - ISO14443 type A/B - ISO18092 (NFC) - MiFare - Felica |
| Barcode Reader/Camera | - 5MP Auto focus back camera, flash LED - 8MP camera (Optional) - Support 1D/2D barcode scanning (Optional) |
| Wireless Communication | - Built-in Wifi 802.11 a/b/g/n/ac (2.4GHz & 5GHz) - Bluetooth 5.0 Dual mode - 4G LTE |
| Peripheral Ports | - USB Type C Connector x 1 |
| Power Supply | - DC 5V/2A |
| Battery Capacity | - Typical capacity: 3.7V / 5300mAH - Rated capacity: 3.7V / 5200mAH |
| Dimension (mm) | - 231.1 (L) x 113.75 (W) x 71.76(H) mm - Hand held part thickness 27.5mm |
| Weight (gm) | - ~666g |
| Environmental | - Operating Temperature: 0°C to 50°C - Storage Temperature: - 20°C to 60°C - Operating Humidity: 5% to 85% (non-condensing) |
