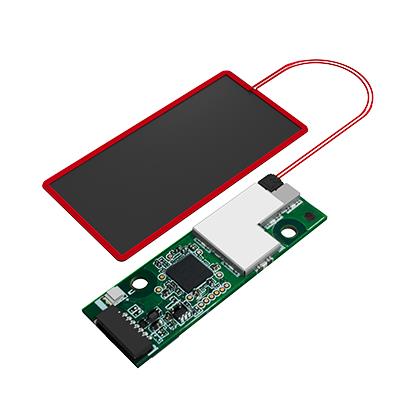

C10
The C10 is a compact NFC payment module designed to enable contactless payment acceptance across a wide range of devices and form factors. Built for flexible integration, it is well suited for OEM designs, SoftPOS solutions, and embedded payment applications where space efficiency and deployment flexibility are essential.
FEATURES
- Small PCBA module for NFC integration into POS solutions
- Customizable antenna design for POS and kiosk hardware integration
- Enables contactless EMV payment acceptance
- EMV Level 1 compliant
- Apple VAS and Apple ECP supported
- Enables Android devices to work seamlessly with SoftPOS (MPoC) solutions
- Supports non-payment NFC applications such as loyalty programs, identification, and value-added services
APPLICATIONS
- POS
- 2nd display
- Retail Kiosk
CERTIFICATIONS
- CE complaint
- FCC module certificate compliant
- Local module certificates by request
- No payment certification
- Note: Future NFC payment (MPOC) can be supported by upgrading FW.
OPTIONAL PERIPHERALS
| CPU | - STM32U ARM Cortex-M33 SoC |
| Standard |
- ISO 14443 type A/B - Apple VAS Compliant |
| Interface | - USB 2.0 full speed - Support CCID |
| Firmware | - XAC Saturn Platform SDK - None payment supported |
| Antenna |
- 13.56MHz - Wire type (fixed on sticker paper) |
| Power Requirement | - 5VDC (+/-5%) @1000mA |
| Dimension | - NFC Controller Board: 55.0 x 18.0 x 3.8mm - NFC Antenna: 60 x 30 mm |
| Environmental | - Operating temperature: 0°C to 50°C - Storage temperature: - 20°C to 60°C - Operating humidity: 5% to 95% (non-condensing) |
