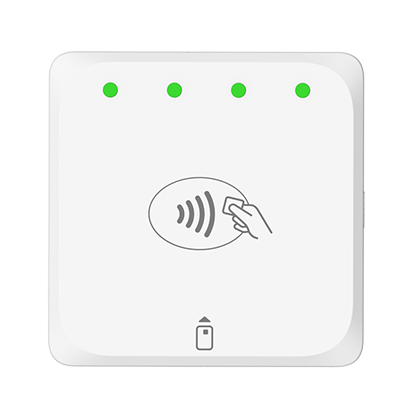

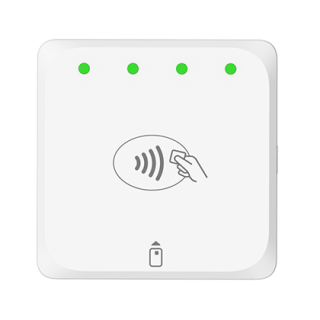

RS1.0
The RS1.0 is an SCRP module designed to enable card-based payment acceptance for custom-built devices, SoftPOS solutions, and mPOS applications. With a modular design for flexible integration, it is well suited for deployment integrated into POS and kiosk systems in attended and semi-attended environments where compliant card reading functionality is required as part of a broader payment solution.
FEATURES
-
SCRP module for card-based payment acceptance
-
Designed for integration into POS and kiosk systems
-
Modular form factor for OEM and embedded device designs
-
Supports SoftPOS and mPOS application deployments
-
Suitable for attended and semi-attended environments
-
Provides compliant card reading functionality as part of a broader payment solution
-
PCI PTS 7 certified
APPLICATIONS
- POS
- 2nd display
- Retail Kiosk
CERTIFICATIONS
Security
- PCI PTS/SCRP 7.x
Regulatory
- CE
- FCC
OPTIONAL PERIPHERALS
Accessory
- USB 2.0 type C to type A cable
- Optional power adaptor (5V/1A)
| CPU | - STM32U ARM Cortex-M33 SoC |
| OS | - RTOS |
| Smart Card Reader | - EMV Contact L1 approval (T=0 & T=1 type) - EMV Contact Level 2 - SLE4442 Memory Card |
| Contactless Card Reader | - Physical LED x4 - ISO14443 type A/B - NFC (ISO18092) - Mifare - Felica |
| Communication | - Bluetooth 4.2 BLE |
| Peripheral Ports | - USB type C *1 |
| Security | - Algorithm: 3DES, AES, RSA - Key management: MK/SK, DUKPT - Secure Code Update Architecture |
| Environmental | - Operating temperature: 0°C to 50°C - Battery Charging Operating Temp.: 0°C to 45°C - Storage temperature: - 20°C to 60°C - Operating humidity: 5% to 95% (non-condensing) |
| Power Supply & Battery | - Powered by 5V / 1A - Built-in rechargeable battery 3.8V/680 mAh |
| Dimension (mm) | - 69 (L) x 69 (W) x 16.5 (H) mm |
