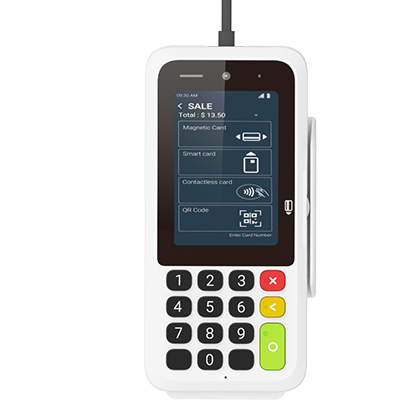

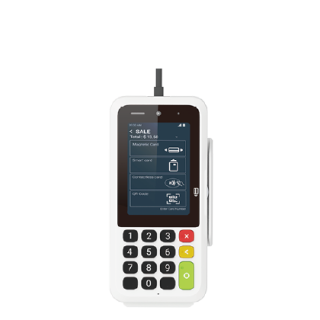

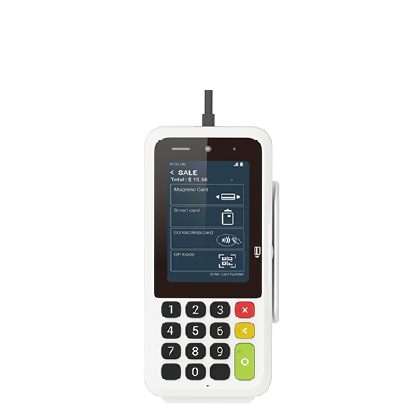

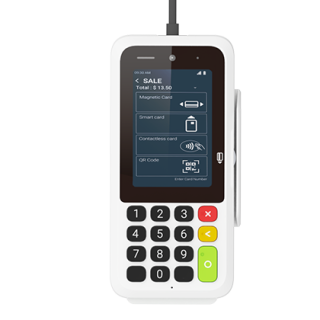

AP20
The AP20 is a compact PIN pad designed to complement POS and SmartPOS systems in retail and service environments. Certified to PCI 6, it features physical keys for secure PIN entry and delivers a familiar, reliable user experience for everyday attended payment operations.
FEATURES
- Compact PIN pad for attended payment environments
- Powered by Android 12
- 3.5” capacitive touch screen
- Chip & PIN + contactless + magnetic stripe
- Physical keypad for PIN entry
- 5MP front camera (8MP optional)
- Microphone for accessibility and visually impaired user support
- LAN + Wi-Fi (2.4GHz / 5GHz) + Bluetooth connectivity
- Optional stand and privacy shield
- PCI PTS 6.x
APPLICATIONS
-
Fashion & Lifestyle Retail;
-
Supermarkets
-
Grocery & Food & Beverage
CERTIFICATIONS
Security & Payment
- PCI PTS 6.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy,Unionpay
- Mastercard TQM
- Sony Felica
Safety
- CE/FCC/CB/cTUVus
- ROHS/WEEE/REACH
OPTIONAL PERIPHERALS
- Communication cable (USB or PoE)
- 5V/3A Power adapter
- Privacy shield
- Quick user guide/safety instruction
- POE adaptor (Optional)
- Ethernet RJ45 cable (Optional)
- Standpod (Optional)
| CPU | - Qualcomm ARM Cortex-A53 quad-core 64bit (QCM2290) up to 2.0GHz - Secure CPU: MAXIM ARM Cortex-M3 |
| OS | - Android 12 |
| Memory | - 2 GB SDRAM +16 GB eMMC - 3 GB SDRAM +32 GB eMMC (Optional) - 4 GB SDRAM +64 GB eMMC (Optional) - MicroSD card slot x1 (Optional) |
| Display | - 3.5” (480x320) TFT color display - Capacitive touch panel - Adaptive brightness (Optional) |
| Encryption PinPad | - 4x4 layout plastic keycap |
| Card Slot | - SAM slot x 1 (Optional) |
| Magnetic Card Reader | - ISO 7811 compliant, 3-track MSR |
| Smart Card Reader | - ISO7816-1/2/3 compliant asynchronous card protocol T=0, T=1 |
| Contactless Card Reader | - ISO14443 type A/B, Mifare - NFC (ISO18092) |
| Audio | - Mono Speaker - Buzzer - Microphone |
| Barcode Reader (Optional) | - 5MP Fix-Focus front facing camera (8MP camera is optional) - Support 1D/2D barcode scanning |
| Interface | - Option#1: USB2.0 Dual connector cable - Option#2: RS232+POE (RJ45) cable |
| Security | - Algorithm: 3DES, RSA - Key Management: MK/SK, DUKPT - Mutual Authentication - Message Encryption - PCI compliant Load Key process |
| Environmental | - Operating Temperature: 0°C to 50°C - Storage Temperature: - 20°C to 60°C - Operating Humidity: 5% to 85% (non-condensing) - IP53 rating |
| Power Supply | - Powered by 5V/3A DC |
| Dimension (mm) | - 165(L) x 81.5 (W) x 25(H) mm |
