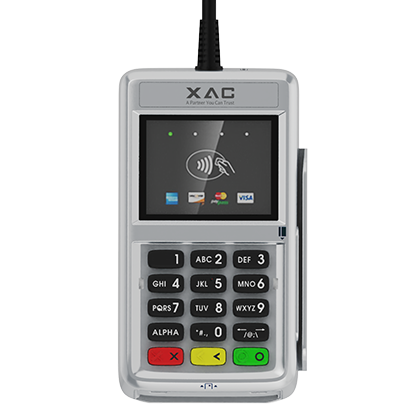

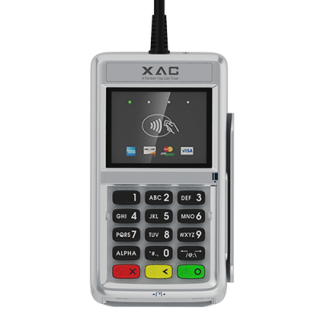

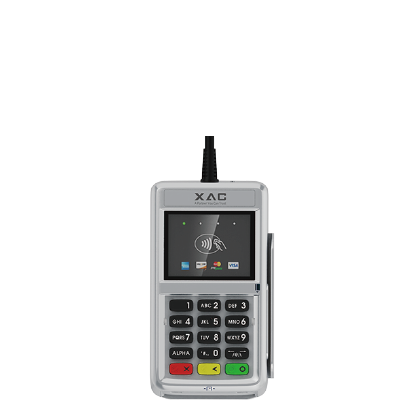

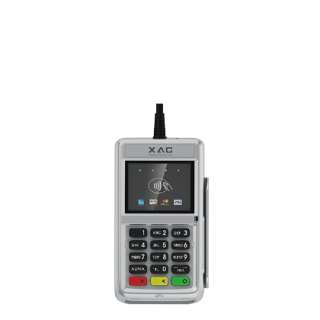

RP10
The RP10 is a compact payment reader designed for space-constrained environments where simple and efficient payment acceptance is required. Certified to PCI 5 and equipped with physical keys, it is well suited for integration into POS systems, kiosks, or custom devices that prioritize straightforward deployment and operational efficiency.
FEATURES
- Compact payment reader for space-constrained installations
- Physical keys for user input
- Chip & PIN + contactless + magnetic stripe
- Designed for POS, kiosk, and embedded system integration
- Suitable for simple attended and semi-attended deployments
- Optimized for efficient installation and operation
- Reliable operation for everyday payment use
- PCI PTS 5
APPLICATIONS
-
Retail & In-Store Payments
-
Supermarkets
-
Grocery & Food & Beverage
- Secure PIN Entry for POS & ECR Systems
CERTIFICATIONS
- PCI PTS 5.x with SRED
- EMV Contact L1 & L2
- EMV Contactless L1
- Mastercard TQM (IFM/PCD)
- PayPass , PayWave, DPAS, ExpressPay, Interac Flash
- GBIC, and CC compliant
- CE, FCC, cTUVus
OPTIONAL PERIPHERALS
| CPU | - Cortex M3 SoC / 108MHz |
| OS | - RTOS |
| Memory | - 32MB NOR FLASH |
| Display | - 2.4" (320x240) full color LCM |
| Encryption PinPad | - 3x5 rubber keypad with backlight |
| Card Slot | - SAM*2 |
| Magnetic Card Reader | - ISO 7811 compliant, 3-track MSR |
| Smart Card Reader | - ISO7816-1/2/3 compliant asynchronous card protocol T=0, T=1 |
| Contactless Card Reader | - ISO14443 type A/B, Mifare, - PayPass, PayWave, DPAS, ExpressPay, Interac Flash - NFC (ISO18092) |
| Peripheral Ports | - USB type A |
| Security | - Algorithm: 3DES, AES, RSA - Key management: MK/SK, DUKPT - Secure Code Update Architecture |
| Environmental | - Operating temperature: 0°C to 50°C - Storage temperature: - 20°C to 60°C - Operating humidity: 5% to 95% (non-condensing) |
| Power Supply | - Powered by 5V DC - Cable length: 1.2 M |
| Dimension (mm) | 133.8 (L) x 75.6 (W) x 25.4 (H) mm |
