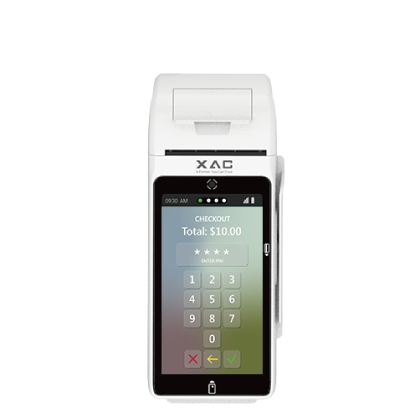

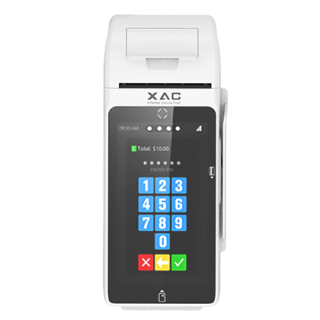

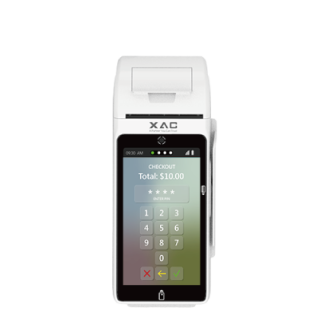

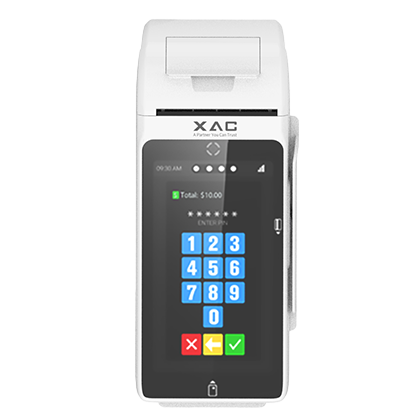

AT150ED
The AT150ED is a desktop SmartPOS optimized for fixed-counter deployments where cost efficiency is a key consideration. As XAC’s most cost-competitive PCI 7–certified SmartPOS, it combines next-generation security with a stable desktop form factor and a 5-inch LCM, making it an ideal choice for high-volume, cost-conscious retail environments.
FEATURES
- Desktop SmartPOS for fixed-counter deployments
- Powered by Android 12
- 5” touch display
- PIN on glass technology
- Chip & PIN + contactless + magnetic stripe
- Cost-competitive design for high-volume retail environments
- Stable desktop form factor for long-term operation
- PCI PTS 7
APPLICATIONS
-
Fashion & Lifestyle Retail
-
Food & Beverage
-
Specialty & Chain Stores
-
Countertop Payments
-
Value-Added Payment Applications
CERTIFICATIONS
Security & Payment
- PCI PTS 7.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Contactless Payment Scheme:
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy
- Other local payment schemes are optional
- Mastercard TQM
- SonyFelica
Safety
- CE/FCC/CB/cTUVus
- ROHS/WEEE/REACH
OPTIONAL PERIPHERALS
- Pole Stand
| CPU/SoC | - Qualcomm ARM Cortex-A53 quad-core 64bit(QCM2290)up to 2.0GHz - Secure: MAXIM ARM Cortex-M3 SoC |
| OS | - Android 12 (Upgradable to Android 14) |
| Memory | - 2 GB SDRAM +32 GB eMMC - Optional up to 4GB SDRAM + 64GB eMMC |
| Display | - 5” 1280x720 full color TFT IPS - Capacitive touch screen display |
| PINPad | - Touch PINPAD |
| Magnetic Stripe Reader | - ISO 7811, 3-tracks |
| SCR | - ISO7816-1/2/3 asynchronous T=0, T=1 - SLE4442 Memory Card - 4 Micro SAM slots (Optional) |
| Contactless Reader | - ISO14443 type A/B - ISO18092(NFC) - Mifare - Felica |
| Barcode Reader/Camera | - 5MP Fixed-Focus camera - Support 1D/2D barcode scanning (Optional) |
| Wireless Communication | - WI-FI 802.11 a/b/g/n (2.4GHz & 5GHz) - Bluetooth 5.0 dual mode - Ethernet(10/100) |
| Peripheral Ports | - USB2.0-A Host x 2 - USB2.0-C Device x 1 - Ethernet RJ-45 x 1 - COM (RJ-12) x1 |
| Power Supply | - DC 12V/3A |
| Dimension (mm) | - 198.5(L) x83.6 (W) x 79.5 (H) mm |
| Weight (gm) | - ~500g |
| Environmental | - Operating Temperature: 0° to 50° - Storage Temperature: - 20° to 60° - Operating Humidity: 5% to 85% (non-condensing) |
