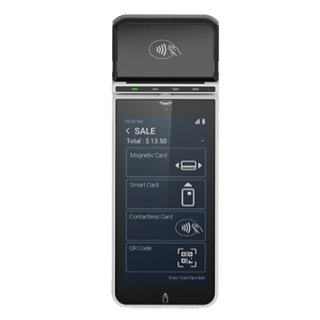

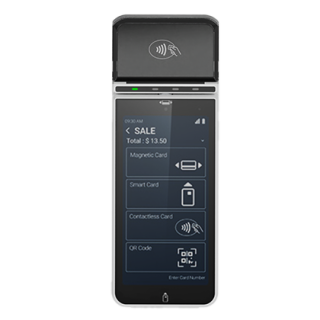

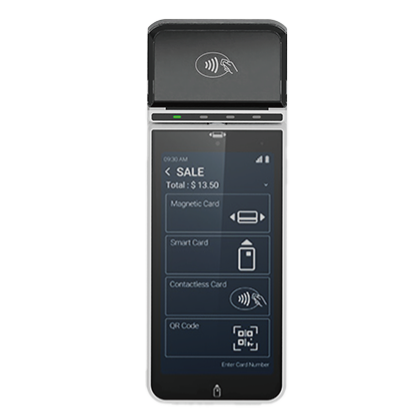

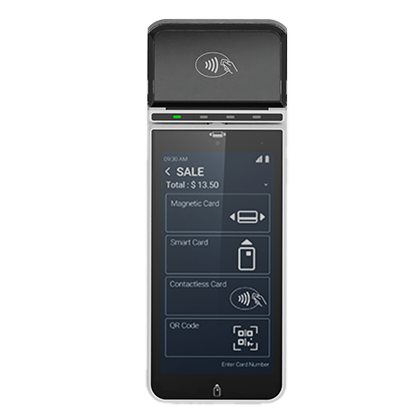

AT160E
The AT160E delivers a refined SmartPOS experience with a slim, modern design and a larger 6-inch LCM that enhances front-end interaction in contemporary retail environments. Certified to PCI 6, it is designed for merchants looking to combine a sleek form factor with an engaging user interface.
FEATURES
- Slim and modern SmartPOS design
- Powered by Android 12
- 6” touch display
- PIN on glass technology
- Chip & PIN + contactless + magnetic stripe
- Enhanced customer interaction visibility
- Designed for contemporary retail environments
- PCI PTS 6.x
APPLICATIONS
-
Fashion & Lifestyle Retail
-
Food & Beverage
-
Specialty & Chain Stores
-
Mobile Payments
-
Value-Added Payment Applications
CERTIFICATIONS
Security & Payment
- PCI PTS 6.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy,Unionpay
- Mastercard TQM
- Sony Felica
Safety
- CE/FCC/CB/cTUVus
- ROHS/WEEE/REACH
OPTIONAL PERIPHERALS
- Docking Base
- Holster
- Silicone Protective Case
| CPU | - Qualcomm ARM Cortex-A53 quad-core 64bit(QCM2290) up to 2.0GHz - Secure: MAXIM ARM Cortex-M3 SoC |
| OS | - Android 12 |
| Memory | - 2 GB SDRAM +16 GB eMMC - 3 GB SDRAM +32 GB eMMC (Optional) - 4 GB SDRAM +64 GB eMMC (Optional) |
| Display | - 6” 1440x720 pixel TFT display - Capacitive touch screen display - Auto-adjustable brightness (Optional) |
| PINPad | Touch PINPAD |
| Printer | - 48 mm printing width with tear bar - 40 mm diameter paper roll |
| SAM/SIM Card Slot | - 1 SIMs + 1 SAMs (Nano type card) |
| MSR | - ISO 7811 compliant 3-track MSR |
| SCR | - ISO7816-1/2/3 asynchronous T=0, T=1 - SLE4442 Memory card - Support 2 SAM slots |
| CTLS | - ISO14443 type A/B - ISO18092 (NFC) - MiFare - Felica |
| Barcode Reader/Camera | - Front: 5MP Fix-Focus camera - Rear: 5MP Auto-Focus camera, flash LED - *8MP camera (Optional) - Support 1D/2D barcode scanning (Optional) |
| Wireless Communication | - WI-FI 802.11 a/b/g/n/ac (2.4GHz & 5GHz) - Bluetooth 5.0 Dual Mode - 4G LTE (support 2 SIMs) |
| Peripheral Ports | - USB Type C Connector x 1 - Charge port x1 (pogo pin type) |
| Power Supply | - DC 5V/2A |
| Battery Capacity | - 7.6V / 2500mAH rechargeable Li-ion battery |
| Dimension (mm) | - 228(L) x84.6 (W) x 45.6(H) mm |
| Environmental | - Operating Temperature: 0°C to 50°C - Battery Charging Operating Temp.: 0°C to 45°C - Storage Temperature: - 20°C to 60°C - Operating Humidity: 5% to 85% (non-condensing) - Support IPx4 rating |
