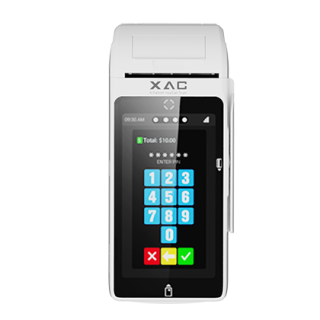

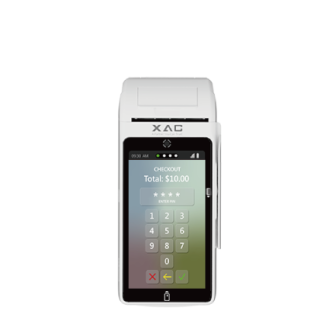

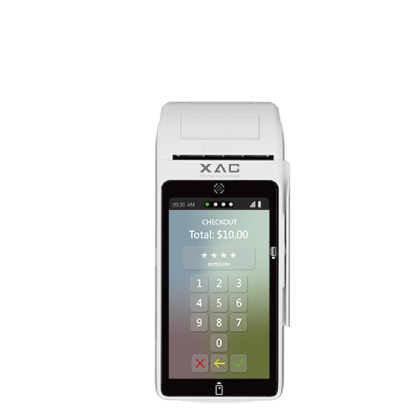

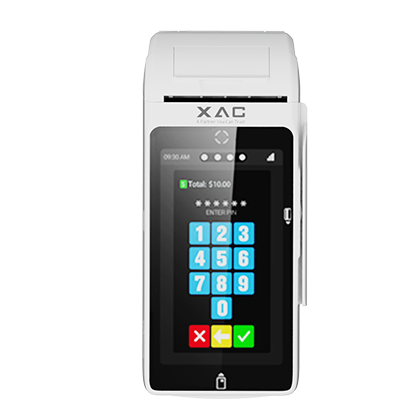

AT150E
The AT150E is a versatile SmartPOS certified to PCI 6, designed for everyday payment scenarios across retail and service industries. Featuring a 5-inch LCM, it supports a wide range of applications and offers a practical balance between compact design and usability.
FEATURES
- Versatile SmartPOS for retail and service environments
- Powered by Android 12
- 5” touch display
- PIN on glass technology
- Chip & PIN + contactless + magnetic stripe
- Designed for flexible attended payment deployments
- Suitable for multi-market rollouts
- PCI PTS 6.x
APPLICATIONS
-
Fashion & Lifestyle Retail
-
Food & Beverage
-
Specialty & Chain Stores
-
Mobile & Countertop Payments
-
Value-Added Payment Applications
CERTIFICATIONS
Security & Payment
- PCI PTS 6.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Contactless Payment Scheme:
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy
- Other local payment schemes are optional
- Mastercard TQM
- SonyFelica
Safety
- CE/FCC/CB/cTUVus
- ROHS/WEEE/REACH
OPTIONAL PERIPHERALS
- Docking Base
- Holster
- Silicone Protective Case
| CPU/SoC | - Qualcomm ARM Cortex-A53 quad-core 64bit(QCM2290)up to 2.0GHz - Secure: MAXIM ARM Cortex-M3 SoC |
| OS | - Android 12 - Optional Android GO (Lite version) |
| Memory | - 2 GB SDRAM +16 GB eMMC - 1 GB SDRAM +8 GB eMMC (Lite version) (Optional) - 3 GB SDRAM +32 GB eMMC (Optional) - 4 GB SDRAM +64 GB eMMC (Optional) |
| Display | - 5” 1280x720 full color TFT IPS - Capacitive touch screen display |
| PINPad | - Touch PINPAD |
| Printer | - 48 mm printing width with tear bar - 34 mm diameter paper roll |
| SAM/SIM Card Slot | - 2 SIMs + 2 SAMs (Standard type card) |
| MSR | - ISO 7811 compliant 3-track MSR |
| SCR | - ISO7816-1/2/3 asynchronous T=0, T=1 - SLE4442 Memory Card - Support 2 SAM slots |
| CTLS | - ISO14443 type A/B - ISO18092 (NFC) - MiFare - Felica |
| Barcode Reader/Camera | - Front: 5MP Fix-Focus camera - Rear: 5MP Auto-Focus camera, flash LED - Support 1D/2D barcode scanning（Optional） - *8MP camera (Optional) |
| Wireless Communication | - Built-in Wifi 802.11 a/b/g/n/ac (2.4GHz & 5GHz) - Bluetooth 5.0 Dual mode - 4G LTE |
| Peripheral Ports | - USB2.0-C x1 |
| Power Supply | - DC 5V/2A |
| Battery Capacity | - Typical capacity: 3.8V / 4000mAH - Rated capacity: 3.8V / 3780mAH - *Optional: larger battery 8000mAH (Typical) |
| Dimension (mm) | - 181(L) x82.6 (W) x 64.9(H) mm |
| Weight (gm) | - ~450g |
| Environmental | - Operating Temperature: 0°C to 50°C - Storage Temperature: - 20°C to 60° - Operating Humidity: 5% to 85% (non-condensing) |
