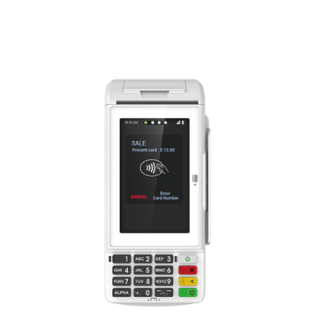

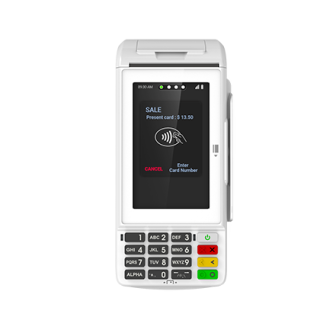

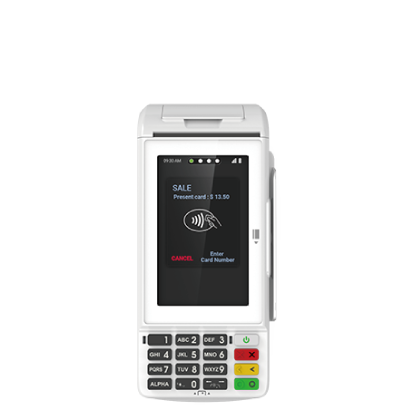

AT100R
The AT100R is an entry-level SmartPOS designed for cost-sensitive payment deployments that still require proven security and compliance. Certified to PCI 5, it features a physical PIN pad and a 5-inch LCM, making it suitable for environments that prefer tactile key input while offering a reliable starting point for Android-based payment projects.
FEATURES
- Entry-level SmartPOS for attended payment environments
- Powered by Android 8
- 4” touch display
- Physical keypad for PIN entry
- Chip & PIN + contactless + magnetic stripe
- Compact design for cost-sensitive deployments
- Designed for retail and service counters
- PCI PTS 5
APPLICATIONS
-
Fashion & Lifestyle Retail
-
Food & Beverage
-
Specialty & Chain Stores
-
Mobile Payments
-
Value-Added Payment Applications
CERTIFICATIONS
- PCI PTS 5.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Mastercard TQM (IFM/PCD)
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy (Optional local payment schemes)
- CE
- CB
- FCC
OPTIONAL PERIPHERALS
- Docking Base
- Holster
- Silicone Protective Case
| CPU | - Cortex-A7 microprocessor cores (quad-core) / 1.1GHz |
| OS | - Android 8.x |
| Memory | - 1GB DDR3 SDRAM / 8GB eMMC Memory - Optional up to 2GB DDR3 / 16GB eMMC Memory) |
| Display | - 4" TFT (480x800) with capacitive touch display |
| Encryption PinPad | - 4x4 rubber keypad with backlight |
| Card Slot | - SAM*2 / SIM (Optional for 4G feature) |
| Magnetic Card Reader | - ISO 7811 compliant. 3-track MSR |
| Smart Card Reader | - ISO7816-1/2/3 compliant asynchronous card protocol T=0, T=1 |
| Contactless Card Reader |
- ISO14443 type A/B, Mifare - PayPass, PayWave, DPAS, ExpressPay, JSpeedy, QuickPass |
| Audio | - Mono Speaker |
| Barcode Reader (Optional) | - 2MP Fix Focus camera - Support 1D/2D barcode scanning |
| Wireless Communication |
- WI-FI 802.11 a/b/g/n (2.4GHz & 5GHz) - GPS tracking (option) |
| Thermal Printer | - 48 mm printing width with tear bar - 34mm diameter paper roll |
| Peripheral Ports | - USB2.0 type C * 1 |
| Security |
- Algorithm: 3DES, AES, RSA, FPE(AES FFX) - Secure program and parameter load |
| Environmental | - Operating Temperature: 0°C to 50°C - Battery Charging Temperature: 0°C to 45°C - Storage Temperature: - 20°C to 60°C - Operating Humidity: 5% to 85% (non-condensing) |
| Power Supply | - Power for xCL_AT-100-R3
- Power for xCL_AT-100-R6
|
| Power | - 5V / 2A DC |
| Dimension (mm) | - 181(L) x82.6 (W) x 64.9(H) mm |
