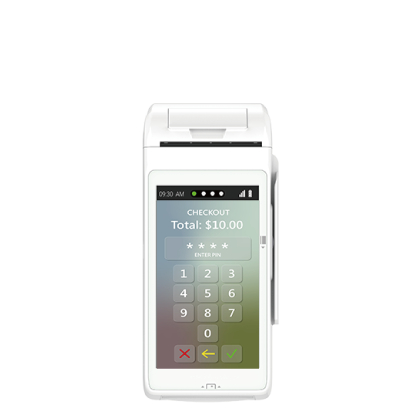

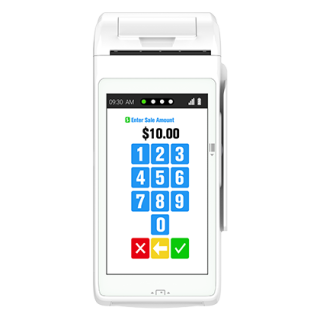

AT150R
Positioned for mainstream retail and service environments, the AT150R delivers a balanced SmartPOS solution certified to PCI 6 with a compact 5-inch LCM. It is well suited for everyday payment operations, offering a stable platform for merchants seeking efficient deployment and consistent user experiences.
FEATURES
- Mainstream SmartPOS for retail applications
- Powered by Android 8
- 5” touch display
- PIN on glass technology
- Chip & PIN + contactless + magnetic stripe
- Balanced form factor for everyday payment operations
- Designed for attended payment environments
- PCI PTS 5.x
APPLICATIONS
-
Fashion & Lifestyle Retail
-
Food & Beverage
-
Specialty & Chain Stores
-
Mobile & Countertop Payments
-
Value-Added Payment Applications
CERTIFICATIONS
- PCI PTS 5.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Mastercard TQM (IFM/PCD)
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy
- Optioanl local payment schemes
- CE
- CB
- FCC
OPTIONAL PERIPHERALS
- Docking Base
- Holster
- Silicone Protective Case
| CPU | - ARM Cortex-A7 microprocessor cores (quad-core) / 1.1GHz |
| OS | - Android 8.x |
| Memory | - 1GB DDR3 SDRAM / 8GB eMMC Memory - 2GB DDR3 / 16GB eMMC Memory (Optional) |
| Display | - 5" TFT (1280x720) with capacitive touch display |
| Encryption PinPad | - TOUCH PINPAD |
| Card Slot | - SAM*2 / SIM (Optional for 4G feature) |
| Magnetic Card Reader | - ISO 7811 compliant. 3-track MSR |
| Smart Card Reader | - ISO7816-1/2/3 compliant asynchronous card protocol T=0, T=1 |
| Contactless Card Reader | - ISO14443 type A/B, Mifare, - PayPass, PayWave, DPAS, ExpressPay, Qickpass, JSpeedy - NFC (ISO18092) |
| Audio | - Audio Jack and Microphone |
| Barcode Reader (Optional) | - Support 1D/2D barcode scanning |
| Wireless Communication |
- WI-FI 802.11 a/b/g/n (2.4GHz & 5GHz) - 4G wireless, SIM x2 (Optional) |
| Thermal Printer | - 48 mm printing width with tear bar - 34mm diameter paper roll |
| Peripheral Ports | - USB2.0 type C * 1 |
| Security |
- Algorithm: 3DES, AES, RSA, FPE(AES FFX) - Key management: MK/SK, DUKPT |
| Environmental | - Operating Temperature: 0°C to 50°C - Battery Charging Temp.: 0°C to 45°C - Storage Temperature: - 20°C to 60°C - Operating Humidity: 5% to 85% (non-condensing) |
| Power Supply - xCL_AT-150-R3 | - Switching Power Adapter 5V/2A - Li-Ion Battery (3000mAH) |
| Power Supply - xCL_AT-150-R6 | - Switching Power Adapter 5V/3A - Li-Ion Battery (6500mAH) |
| Dimension (mm) | - 181(L) x82.6 (W) x 64.9(H) mm |
