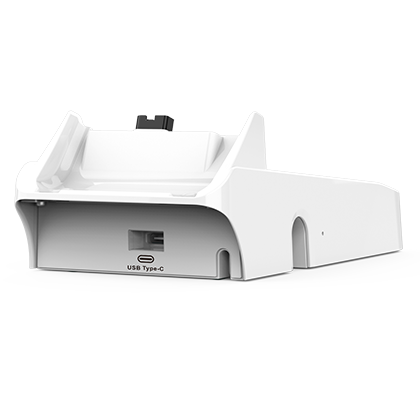

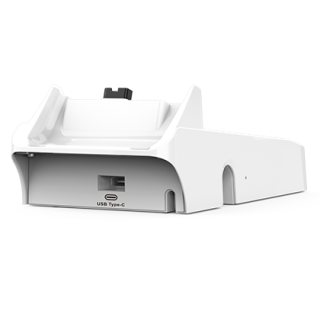

XC-60-EF/-CF
A charging stand for xCL_AT-150-E with wireless connection to peripheral devices.
FEATURES
- Provides stable desktop placement for daily payment operations
- Enables convenient charging and device readiness
- Optional docking base with extension ports for enhanced connectivity and peripheral integration
- Ideal for fixed checkout counters and semi-attended environments
APPLICATIONS
-
Hypermarket
-
Grocery Store
-
Chain Store
-
Food Court
-
Restaurant
CERTIFICATIONS
- CE
- FCC
- CB
OPTIONAL PERIPHERALS
| CPU | - Cortex M4 |
| OS | - Embedded Linux |
| Memory | - 32MB Flash / 128 MB RAM |

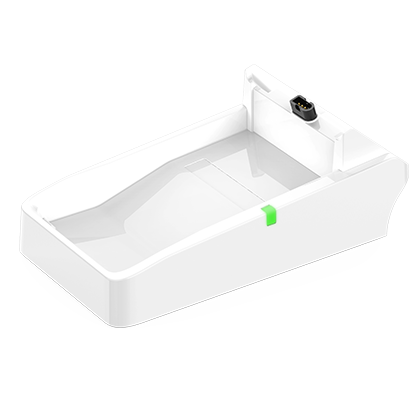

| Charging Contact | - Charging pins dedicated for xCL_AT-100E/150E |
| Wireless Communication | - WIFI 802.11 b/g/n - Soft Access Mode & Bridge Mode |

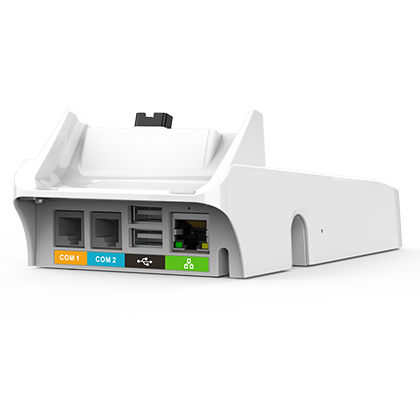

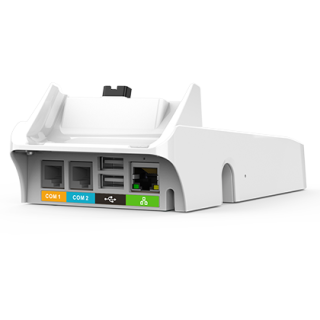

| Configuration | - XC-60-CF: Charger Stand - XC-60-EF: Charger Stand + Ethernet + USB host x 2 + RS232 x2 |
| LED | - Dual colors LED for different device status |
| Environmental | - Operating temperature: 0°C to 50°C - Storage temperature: - 20°C to 60°C - Operating humidity: 5% to 95% (non-condensing |
| Power Supply | - Power Adaptor & Cord |
| Power | - XC-60-CF: 9V/3A - XC-60-EF: 12V/4A |
| Dimension (mm) | - 167 (L) x 85 (W) x 60 (H) mm |
