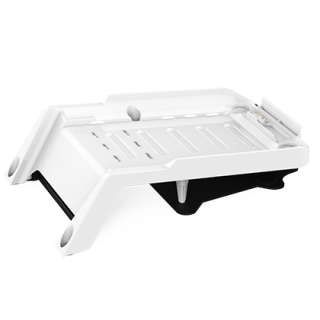

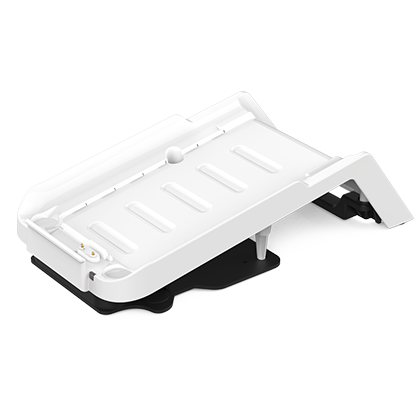

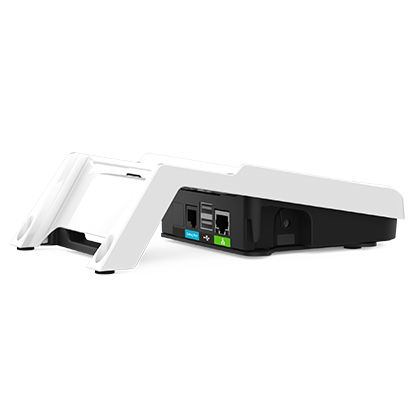

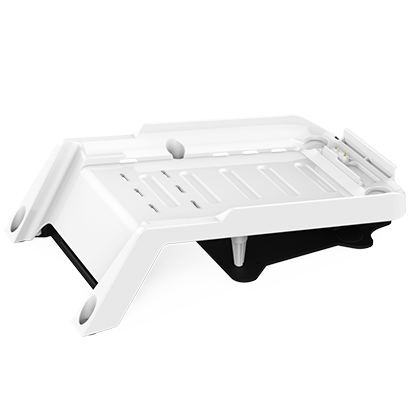

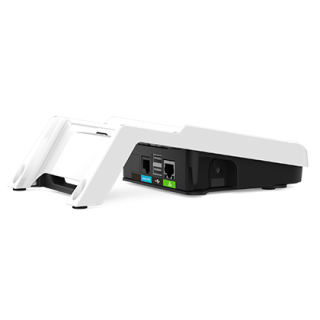

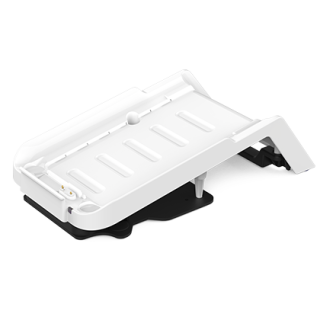

XC-70
A charging stand for the xCL_AT-170 with wireless connection to peripheral devices.
FEATURES
- Provides stable desktop placement for daily payment operations
- Enables convenient charging and device readiness
- Optional docking base with extension ports for enhanced connectivity and peripheral integration
- Ideal for fixed checkout counters and semi-attended environments
APPLICATIONS
-
Hypermarket
-
Grocery Store
-
Chain Store
-
Food Court
-
Restaurant
CERTIFICATIONS
- CE
- FCC
- CB
OPTIONAL PERIPHERALS
| CPU | - Cortex M4 |
| OS | - Embedded Linux |
| Memory | - 32MB Flash / 128 MB RAM |
| Charging Contact | - Charging pins dedicated for xCL_AT-170 |
| Wireless Communication | - WIFI 802.11 b/g/n - Soft Access Mode & Bridge Mode |
| Configuration | - Stand Only - Charger Stand - Charger Stand + Ethernet + USB host x 2 + RS232 x2 - Charger Stand + Ethernet + USB host x 2 + RS232 + Modem |
| LED | - Dual colors LED for different device status |
| Environmental | - Operating temperature: 0°C to 50°C - Storage temperature: - 20°C to 60°C - Operating humidity: 5% to 95% (non-condensing) |
| Power Supply |
- Charger stand: 12V/2A Adapter & USB cable (type C to A) - Charger with IO ports: Power adapter 12V/2A |
| Power | - 12V/2A DC switching power supply |
| Dimension (mm) | - 209.3 (L) x 117 (W) x 54.2 (H) mm |
