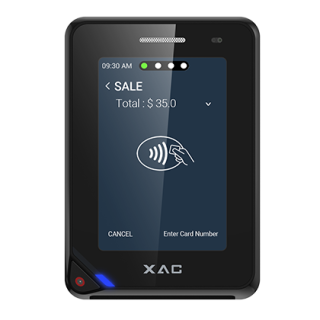

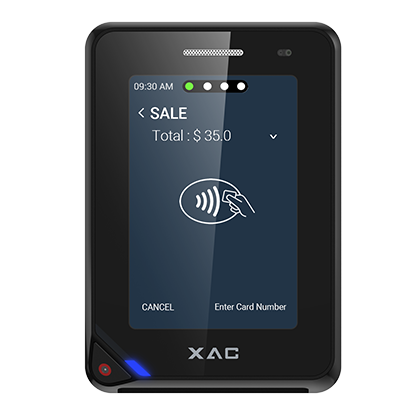

AT100U
The AT100U is a compact all-in-one unattended payment terminal designed for space-constrained self-service installations. Certified to PCI 6 and equipped with a 3.5-inch LCM, it is well suited for applications such as vending machines, parking systems, and access-controlled services, where minimal footprint and reliable operation are essential.
FEATURES
- All-in-one unattended payment terminal
- 3.5” touch display
- Secure Android 14 operating system
- PIN on glass technology
- Built-in 4G connectivity (optional)
- Fixed-focus camera for optimal barcode decoding performance
- Auto-adjustable light sensor for improved visual experience
- MDB slave supported
- Designed for vending, parking, and access-controlled services
- Wide operating temperature range (-30°C to 70°C)
- Rugged design with UV and water resistance
- IK08 / IP54 compliant
- PCI PTS 6.x
APPLICATIONS
-
Transit & Public Transportation
-
Petrol Stations & EV Charging
-
Vending Machines & Self-Service Kiosks
-
Parking & Access Control
-
High-Traffic Unattended Payments
CERTIFICATIONS
Security Certification
Safety
- PCI PTS 6.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Mastercard TQM (PCD/IFM)
- PayPass|PayWave|DPAS|ExpressPay|China UnionPay|JCB J-Speedy
- Google Pay, Apple Pay, Samsung Pay, Apple Pay VAS, ECP2, Google Smart Tap
Safety
- FCC | CE | CB | cTUVus
- ROHS/WEEE/REACH
- IP65 | IK08 compliant
- High durability UV proof rated plastic
OPTIONAL PERIPHERALS
| CPU/SoC | System:MT8766 Quad-Core A53 Secure: STM32U ARM Cortex-M33 SoC |
| OS | Android 14 |
| Memory | - 2 GB SDRAM +16 GB eMMC Optional - 4 GB SDRAM +64 GB eMMC |
| Display | - 3.5” 640x960 full color TFT IPS - Capacitive Touch (PIN Entry) - Auto adjustable brihtness |
| SCR | - EMV L1 approval (T=0 & T=1 type) - Support up to 2 SAM slots (Optional) - Card slot with LED light guide |
| CTLS | ISO14443 type A/B ISO18092 (NFC) MiFare Sony Felica |
| Barcode Reader/Camera | - 0.3MP fixed-focus front camera |
| Wireless Communication | Built-in Wifi 802.11 a/b/g/n/ac (2.4GHz & 5GHz) Bluetooth 5.0 Dual mode 4G LTE (optional external antenna) GPS (optional external antenna) |
| Peripheral Ports | - USB2.0-A x2 - USB2.0-C x1 - COM RJ12 x1 - Ethernet 10/100 RJ-45 x1 - MDB Slave x1 |
| Audio |
- Mono Speaker
- 3.5mm headset jack x1 |
| Power Supply | - 12V/2A input - Host wake-up on card insert (Optional) |
| Dimension (mm) | - 110 (L) x 77 (W) x 45 (D) mm (Support Portrait & Landscape Mounting) |
| Weight (gm) | - ~350g |
| Environmental | Operating Temperature: - 30°C to 70°C Storage Temperature: - 40°C to 75°C Operating Humidity: 5% to 95% (non-condensing) |
