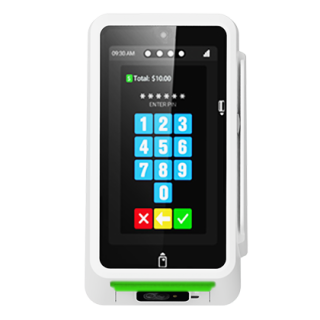

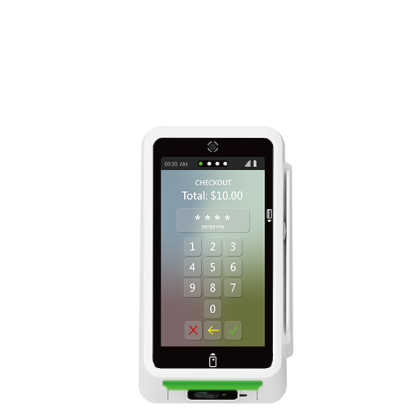

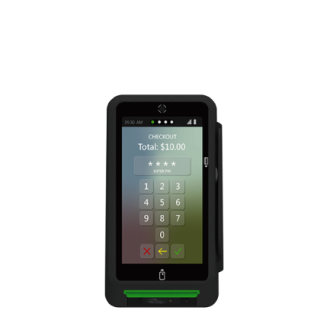

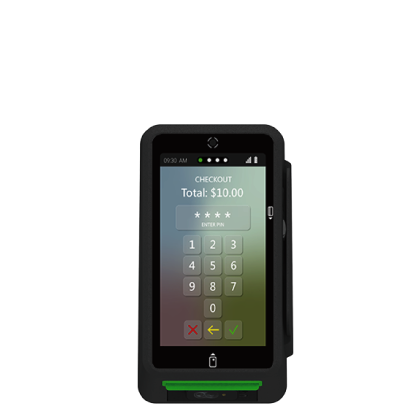

AT150U
The AT150U is an all-in-one unattended payment terminal designed for self-service environments that benefit from a larger customer interface. Certified to PCI 6 and featuring a 5-inch LCM, it is ideal for applications such as fuel dispensers, EV charging stations, parking facilities, and other unattended scenarios where clearer user guidance and on-screen interaction are required.
FEATURES
- All-in-one unattended payment terminal
- 5” touch display
- PIN on glass technology
- Built-in 4G connectivity (optional)
- Fixed-focus camera for optimal barcode decoding performance
- Auto-adjustable light sensor for improved visual experience
- MDB slave supported
- Designed for fuel dispensers, EV charging stations, parking facilities, and other high-usage unattended environments
- Wide operating temperature range (-30°C to 70°C)
- Rugged design with UV and water resistance
- IK08 / IP54 compliant
- PCI PTS 6.x
APPLICATIONS
-
Transit & Public Transportation
-
Petrol Stations & EV Charging
-
Vending Machines & Self-Service Kiosks
-
Parking & Access Control
-
High-Traffic Unattended Payments
CERTIFICATIONS
Security & Payment
- PCI PTS 6.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Contactless Payment Scheme:
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy
- Other local payment schemes are optional
- Mastercard TQM
- SonyFelica
Safety
- CE/FCC/CB/cTUVus
- ROHS/WEEE/REACH
- IK08
- IP65
- High durability weather proof UV rated plastic
OPTIONAL PERIPHERALS
- USB display dongle (Option for Android 12)
- Drive 2nd touch display to support
- ECR POS/KISOK/Vending Machine
- Customer Facing Touch Display
| CPU/SoC | - Qualcomm ARM Cortex-A53 quad-core 64bit(QCM2290)up to 2.0GHz - Secure:MAXIM ARM Cortex-M3 SoC |
| OS | - Android 12 |
| Memory | - 2 GB SDRAM +16 GB eMMC - 3 GB SDRAM +32 GB eMMC (Optional) - 4 GB SDRAM +64 GB eMMC (Optional) |
| Display |
- 5” 1280x720 full color TFT IPS - Capacitive Touch (PIN Entry) |
| MSR | - ISO 7811 compliant 3-track MSR |
| SCR | - ISO7816-1/2/3 asynchronous T=0, T=1 - Landing type card slot with light guide - Support up to 4 SAM slots (Optional) |
| CTLS | - ISO14443 type A/B - ISO18092 (NFC) - MiFare - Sony Felica |
| Barcode Reader/Camera | - 5MP Auto-Focus front facing camera - 5MP Fix-Focus rear camera with aiming and flash LED - Support 1D/2D barcode scanning (Optional) - 8MP camera (Optional) |
| Wireless Communication | - Built-in Wifi 802.11 a/b/g/n/ac (2.4GHz & 5GHz) - Bluetooth 5.0 Dual mode - 4G LTE (built-in antenna) |
| Fingerprint Module (AT150U Pro) | - FBI PIV certified - Sensing area: 12.8mm x 18mm |
| Peripheral Ports |
- USB2.0-C x1
Optional Extension Hub |
| Power Supply |
- 12V~45V input - Host wake-up on card insert (Optional) |
| Dimension (mm) | - AT150-U: 166 (L) x 93(W) x 55(D) mm - AT150-U Pro: 201(L) x 93(W) x 55(D) mm |
| Weight (gm) | - ~350g |
| Environmental | - Operating Temperature: - 20°C to 60°C - Storage Temperature: - 40°C to 80°C - Operating Humidity: 5% to 95% (non-condensing) |
