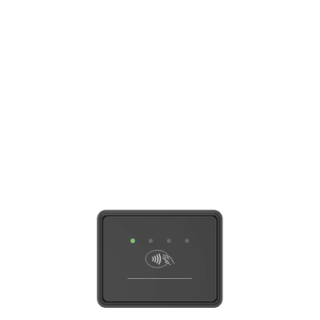

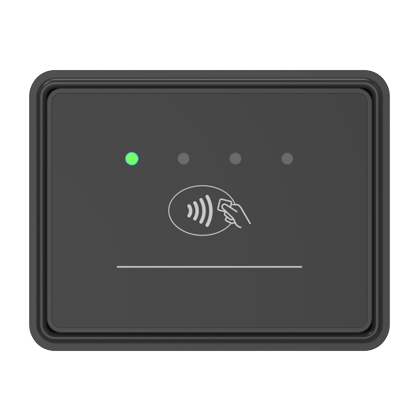

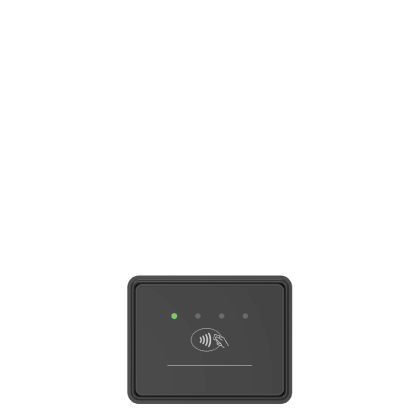

C150SE
The C150SE is a rugged and reliable standalone contactless reader designed for flexible integration into OEM, kiosk, and self-service payment deployments. Certified to PCI 6, it is well suited for applications including transit payment systems, ticketing, and other high-availability environments where secure transactions and adaptable system integration are required.
FEATURES
- Standalone contactless payment reader
- Modular design for OEM, POS, and kiosk integration
- Optimized for transit payment and ticketing applications
- USB 2.0 or RS232 communication interfaces
- Supports portrait or landscape orientation
- Models available for front or rear mounting
- Wide operating temperature range (-40°C to 70°C)
- IP65 / IK10
- Supports VCTKS, INTERAC Flash, UnionPay in Transit, Apple ECP, and Google VAS specifications
- PCI PTS 6
APPLICATIONS
-
Transit & Public Transportation
-
Petrol Stations & EV Charging
-
Vending Machines & Self-Service Kiosks
-
Parking & Access Control
-
High-Traffic Unattended Payments
CERTIFICATIONS
Compliance Approval
- PCI PTS 6.0
Regulatory Approval
- CE
- FCC
- UKCA
OPTIONAL PERIPHERALS
| CPU | - ARM CORTEX M3 secure processor - Supports Program and Parameter updates |
| Card Slot | - SAM x 2 |
| Contactless Card Reader | - 4 LED sequence indicators - ISO 14443 type A/B - NFC: ISO 18092 - Mifare - Felilca - EMV Contactless L1 - Contactless Payment Schemes: Paywave | Paypass | DPAS 2 | ExpressPay | CUP | J-Speedy | Interac Flash - Device firmware programmable with upgrade capability |
| Audio | - Buzzer |
| Peripheral Ports | - USB 2.0 full speed x 1 - RS232 x 1 |
| Environmental | - Operating Temperature : -40°C to 70°C - Storage Temperature : -40°C to 85°C - Operating Humidity : 5% to 95% RH (non-condensing) - IP65 rating (for Outdoor and Rugged models) - IK10 impact resistance - Material complies with NFPA130(Optional) |
| Power | - 5VDC± 5% @ 500 mA |
| Dimension (mm) | - 78mm (W) x 100mm (H) x 35mm (D) - Portrait and Landscape models |
