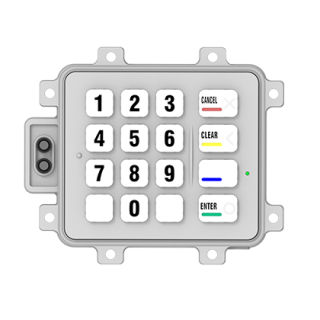

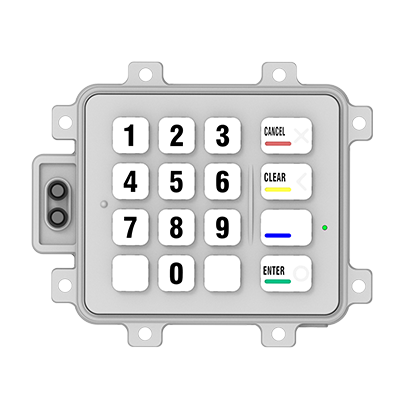

SPED5
The SPED 5 is a rugged and reliable modular secure PIN entry device designed for flexible integration into OEM, kiosk, and self-service payment systems. Certified to PCI 5, it supports secure PIN entry while allowing system integrators to adapt configurations to different enclosure designs and deployment requirements, making it suitable for unattended and semi-attended payment environments.
FEATURES
- Metal Encrypting PIN pad (EPP)
- Designed for OEM, POS, and kiosk-based payment systems
- Suitable for unattended and semi-attended environments
- Flexible integration as a payment input component
- Rugged and reliable design for high-usage deployments
- PCI PTS 5
APPLICATIONS
-
Transit & Public Transportation
-
Petrol Stations & EV Charging
-
Vending Machines & Self-Service Kiosks
-
Parking & Access Control
-
High-Traffic Unattended Payments
CERTIFICATIONS
- CE
- FCC
- ROHS/WEEE/REACH
OPTIONAL PERIPHERALS
| CPU | - 32-bit ARM Cortex M0 (72MHz) |
| OS | - RTOS |
| Memory | - NOR Flash 4MB |
| Keypad | - 4x4 metal keycap - Number key x10 (0~9) - Function key x 4 - Vandalism protection IK10 rating |
| LED | - Tricolor LED for different device status |
| Extension Port | - USB type A or RS232 COM |
| Security | - Algorithm: 3DES, AES, RSA - Key Management: MK/SK, DUKPT - Secure Code Update Architecture - Mutual Authentication - Message Encryption - Removal Protection |
| Environmental | - Operating Temperature: -20°C to 70°C - Storage Temperature: - 30°C to 70°C - Operating Humidity: 5% to 95% (non-condensing) - IK10 impact resistance - IP rating: IP65 (Front side) / IPx2 (Rear side) |
| Power | - 5V / 500mA |
| Dimension (mm) | - 115(L)x 96.4(W)x 30(H) mm |
