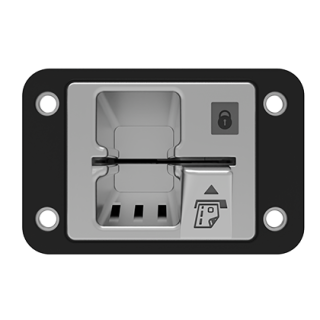

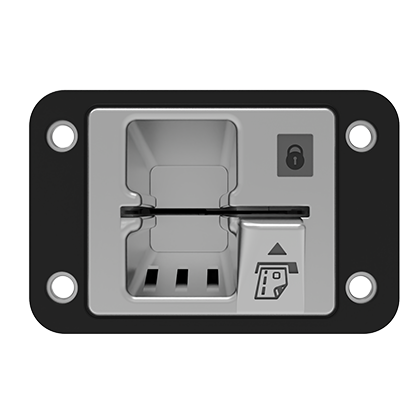

P96
The P96 is a rugged and reliable secure hybrid reader designed for payment deployments that require adaptable system integration and a consistent customer interaction experience. Certified to PCI 6, it combines secure payment capability with a modular design approach, helping integrators optimize installation, configuration, and ongoing service across diverse self-service applications.
FEATURES
- Manual hybrid card reader
- Card slot shutter design
- Anti-skimming and shimming protection
- Modular design for OEM, POS, and kiosk integration
- Suitable for unattended and semi-attended deployments
- Wide operating temperature range (-30°C to 70°C)
- Rugged and reliable construction for public-facing environments
- IP65& IK9
- PCI PTS 6
APPLICATIONS
-
Transit & Public Transportation
-
Petrol Stations & EV Charging
-
Vending Machines & Self-Service Kiosks
-
Parking & Access Control
-
High-Traffic Unattended Payments
CERTIFICATIONS
- PCI PTS 6.x
- EMV Contact L1/L2
- CE EMC
- FCC
- CB
- UL1238 Class 1 Division 2
- ROHS / WEEE / REACH
OPTIONAL PERIPHERALS
- 12V Power adapter for RS232
- Foreign object cleaning kit
| CPU | - 32-bit ARM Cortex M33 Processor |
| OS | - RTOS |
| Magnetic Stripe Reader | - ISO 7811, AAMVA compliance - 3 tracks MSR reading capability |
| Smart Card Reader | - EMV L1 approval ( T=0 & T=1 type) - Support 2 SAMs (optional) |
| LED | - Tricolor LED for different device status |
| Extension Port | - USB or RS232 |
| Sensors | - Card-Insertion Sensor - Card-Ready Sensor - Card-Lock Sensor - Unlock Sensor - Foreign-Object Sensor |
| Security | - PCI PTS 6.X SRED - Algorithm: 3DES, RSA - Key Management: DUKPT - Mutual Authentication - Message Encryption - PCI compliant Load Key process - Card slot shutter design - Anti-Skimming/Shimming design |
| Environmental | - Operating Temperature: -30°C to 70°C - Storage Temperature: - 30°C to 70°C - Operating Humidity: 5% to 95% (non-condensing) - IK09 impact resistance - IP rating: IP54 (front bezel) / IPx2 (rear) |
| Power | - 6. 5V~ 1 4 V@500mA DC (RS232) - 5V@500mA DC (powered by USB) |
| Dimension (mm) | - 71(L)×108.6(W)×120.8 (D) mm |
