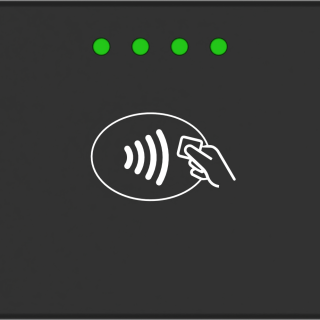

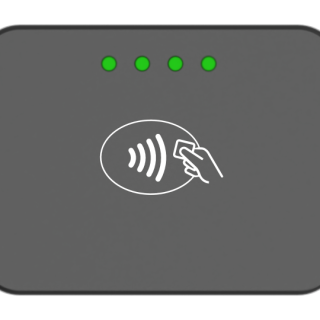

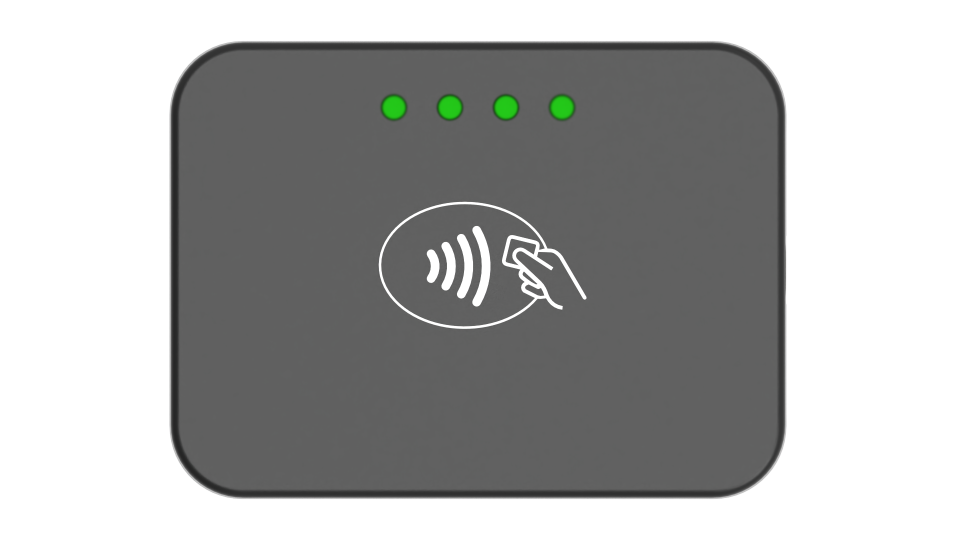

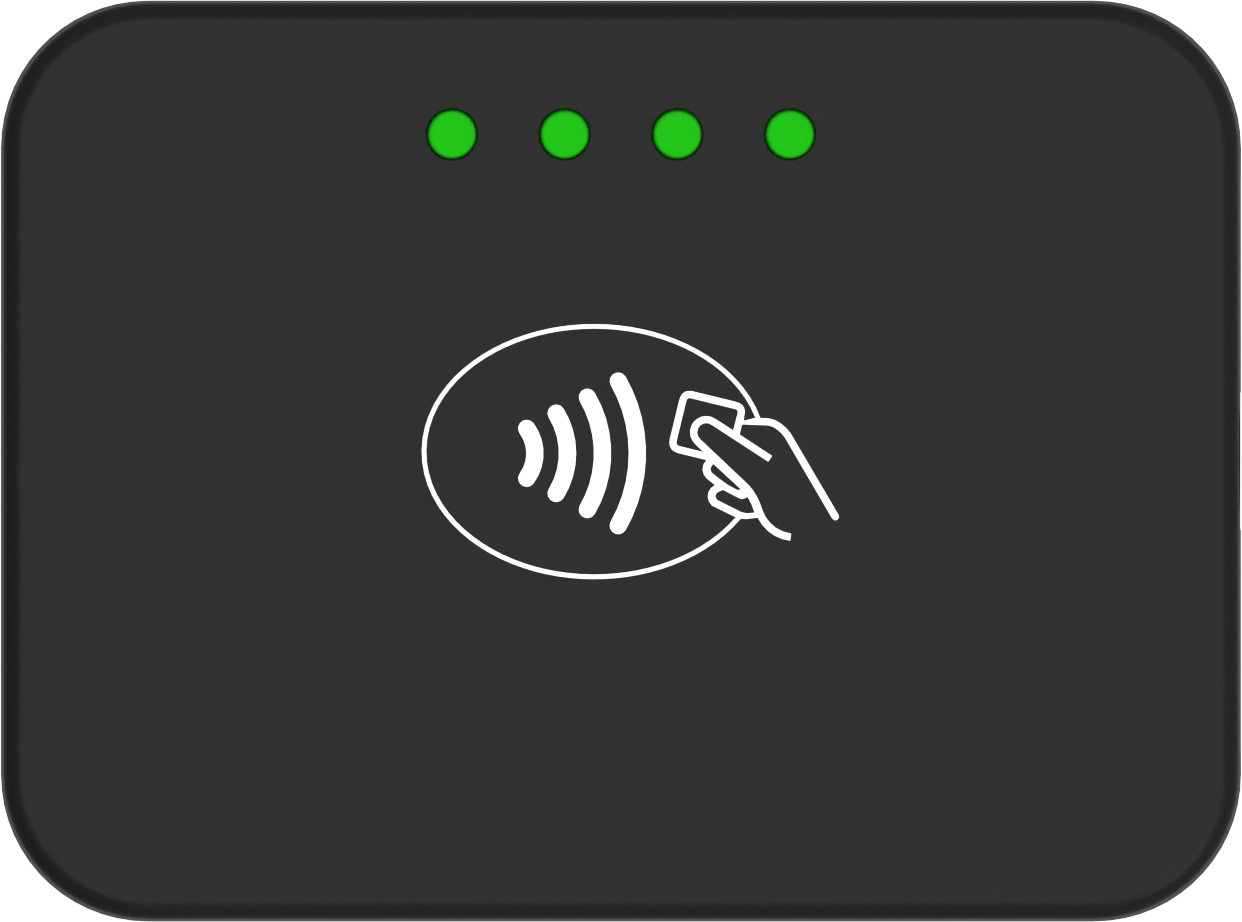

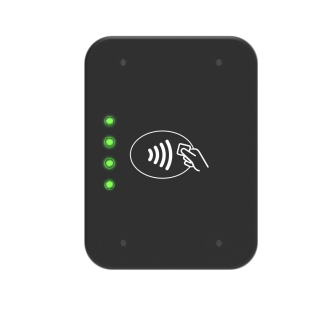

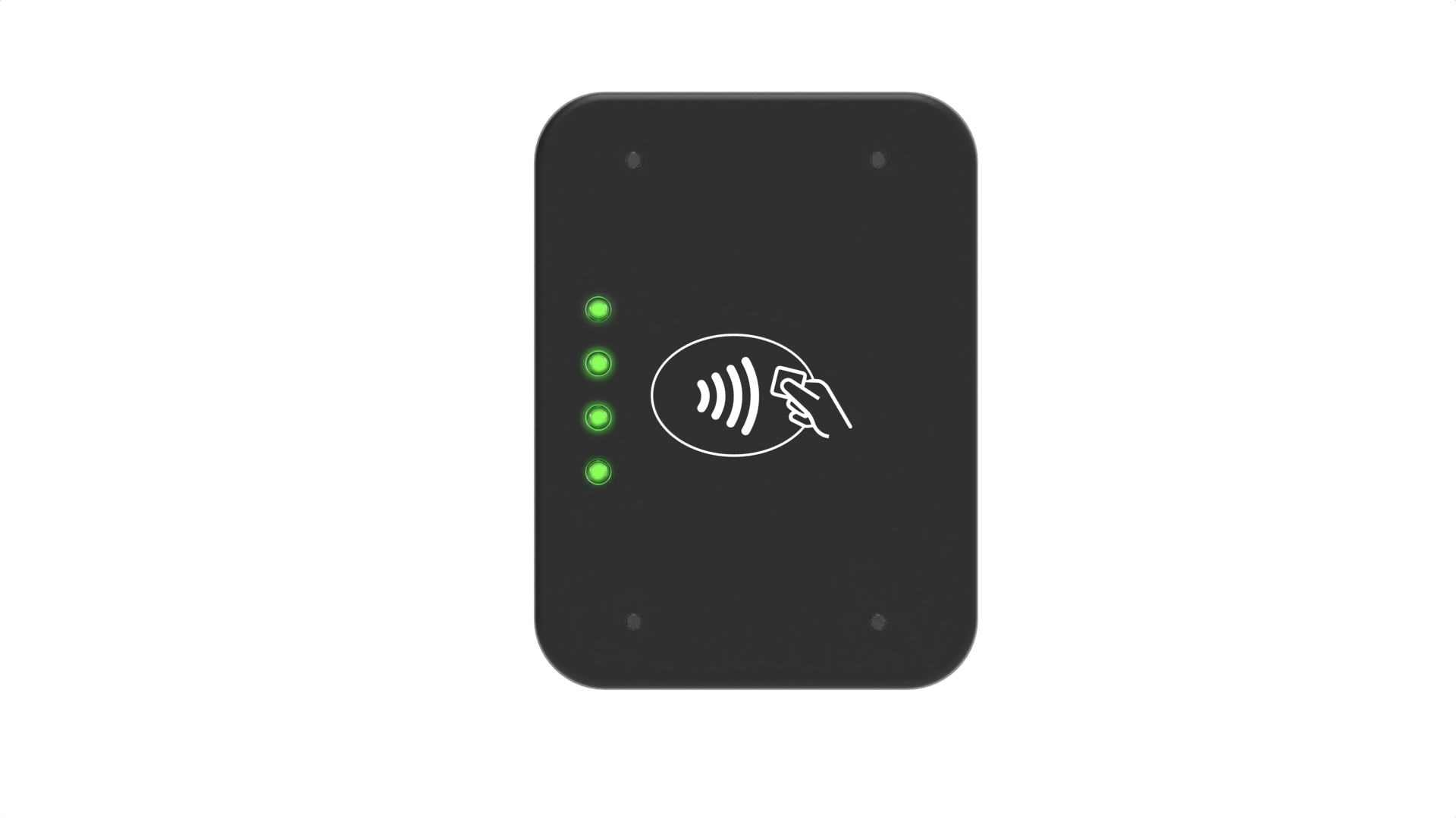

C170
FEATURES
- Compt contactless payment reader
- Modular design for OEM, POS, and kiosk integration
- Optimized for transit payment and ticketing applications
- USB 2.0 communication interfaces
- Supports portrait or landscape orientation
- Models available for front or rear mounting
- Wide operating temperature range (-40°C to 70°C)
- IP65 / IK10
- Supports VCTKS, INTERAC Flash, UnionPay in Transit, Apple ECP, and Google VAS specifications
- PCI PTS 7
APPLICATIONS
-
Vending Machines & Self-Service Kiosks
-
Transit & Public Transportation
-
Petrol Stations & EV Charging
-
Parking & Access Control
-
High-Traffic Unattended Payments
CERTIFICATIONS
Certification
- PCI PTS 7x with SRED
- EMV Contactless L1
- EMV Contactless global payment schemes
- Mastercard TQM
- Mifare
- Sony Felica
- Apple VAS
- Google SmartTap
Regulatory Certificates
- CE
- FCC
- ROHS/WEEE/REACH
OPTIONAL PERIPHERALS
| CPU | - ARM Cortex M33 secure processor |
| Standards |
- ISO 14443 type A/B - NFC: ISO 18092 - Mifare - Sony Felica - EMV Contactless Level 1 - Paywave - Paypass - Discover DPAS - Amreican ExpressPay - Interac Flash - QuickPass - Jspeedy - Apple VAS - Google SmartTap |
|
Interface Supported |
- USB 2.0 full speed - Customizble interface cable |
|
Dimension |
- 66 mm (W) x 49 mm (H) x10 mm (D) |
|
Power Requirement |
- 5VDC± 5% @ 800 mA |
|
Environmental |
- Operating Temperature : -30°C to 70°C - Storage Temperature : -30°C to 70°C - Operating Humidity : 5% to 95% RH (non-condensing) - IP65 (with optional bezel) - IK08 (with optional bezel) - High durability Weatherproof UV rated plastic |
