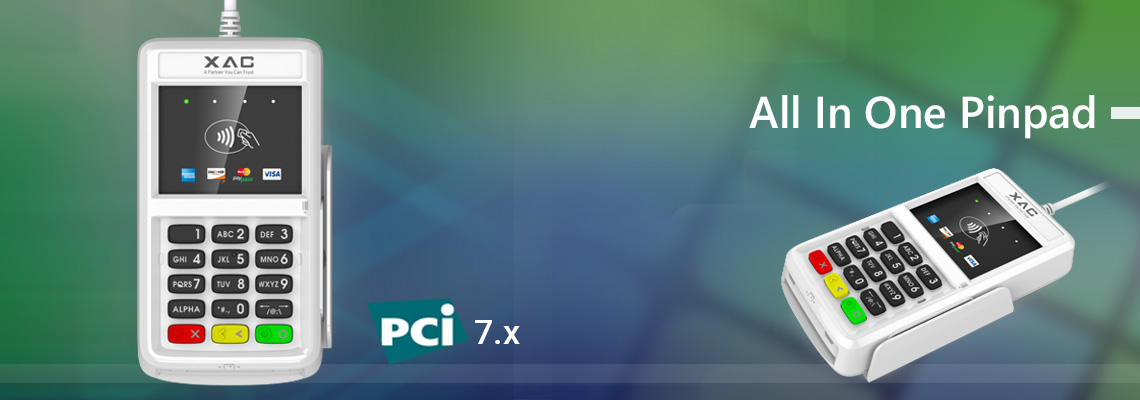

All In One PINPAD (PCI7)
Desktop PINPAD RP-20 is certified for PCI 7.x ,It combines magnetic card swiping, EMV, PIN entry, and NFC/contactless reading capabilities into a small integrated “hand held” peripheral that can connect into a multitude of devices including terminals, POS systems, and ECRs.
| CPU | Cortex M3 SoC / 108MHz |
| OS | RTOS |
| Display | 2.4" (320x240) full color LCM |
| Encryption PinPad | 3x5 rubber keypad with backlight |
| Card slot | SAM*2 |
| Magnetic Card Reader | ISO 7811 compliant, 3-track MSR |
| Smart Card Reader | ISO7816-1/2/3 compliant asynchronous card protocol T=0, T=1 |
| Contactless Card Reader | - ISO14443 type A/B, Mifare, - PayPass, PayWave, DPAS, ExpressPay, Interac Flash - NFC (ISO18092) |
| Peripheral Ports | USB type A |
| Security | - Algorithm: 3DES, AES, RSA - Key management: MK/SK, DUKPT - Secure Code Update Architecture |
| Environmental | - Operating temperature: 0°C to 50°C - Storage temperature: - 20°C to 60°C - Operating humidity: 5% to 95% (non-condensing) |
| Power Supply | - Powered by 5V DC - Cable length: 1.2 M |
| Dimension (mm) | 133.8 (L) x 75.6 (W) x 25.4 (H) mm |
- PCI PTS 7.x with SRED
- EMV Contact L1 & L2
- EMV Contactless L1
- Mastercard TQM (IFM/PCD)
- PayPass , PayWave, DPAS, ExpressPay, Interac Flash (Optional)
- GBIC, and CC compliant
- CE, FCC, cTUVus
- EMV Contact L1 & L2
- EMV Contactless L1
- Mastercard TQM (IFM/PCD)
- PayPass , PayWave, DPAS, ExpressPay, Interac Flash (Optional)
- GBIC, and CC compliant
- CE, FCC, cTUVus
| # | Description | File Name |
|---|---|---|
| 1 | xCL_RP-20 | DOWNLOAD |
