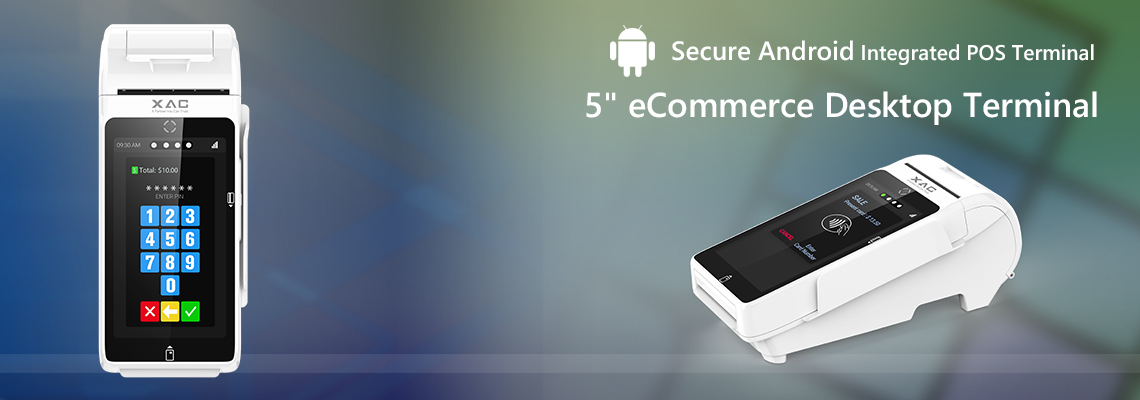

5" Smart POS Desktop Terminal (PCI6/Android12)
• xCL_AT-150-ED provides ECRPOS functions with COTS peripherals of touch display, POS keyboard, standalone barcode scanner, shopper display
• All in one Desktop Terminal
• PCI PTS 6.x certified
• Latest E6 platform with Secure Android 12 OS.
• Built-in thermal printer and industrial standard barcode reader.
#retail
#restaurant
#hypermarket
#grocerystore
#foodcourt
#restaurant
#hypermarket
#grocerystore
#foodcourt
| CPU/SoC |
Qualcomm ARM Cortex-A53 quad-core 64bit(QCM2290)up to 2.0GHz |
| OS |
Android 12 |
| Memory |
2 GB SDRAM +16 GB eMMC Optional - 3 GB SDRAM +32 GB eMMC - 4 GB SDRAM +64 GB eMMC |
| Display |
5” 1280x720 full color TFT IPS Capacitive touch screen display |
| PINPad |
Touch PINPAD |
| Magnetic Stripe Reader |
ISO 7811, 3-tracks |
| SCR |
ISO7816-1/2/3 asynchronous T=0, T=1 SLE4442 Memory Card 4 Micro SAM slots (Optional) |
| Contactless Reader |
ISO14443 type A/B, Felica ISO18092(NFC) Mifare |
| Barcode Reader/Camera | 5MP Fixed-Focus camera Support 1D/2D barcode scanning (Optional) |
| Wireless Communication | WI-FI 802.11 a/b/g/n (2.4GHz & 5GHz) Bluetooth 5.0 dual mode Ethernet(10/100) |
| Peripheral Ports | USB2.0-A Host x 2 USB2.0-C Device x 1 Ethernet RJ-45 x 1 COM （RJ-12) x1 |
| Power Supply | DC 12V/3A |
| Dimension (mm) | 198.5(L) x83.6 (W) x 79.5 (H) mm |
| Weight (gm) | ~500g |
| Environmental | Operating Temperature: 0° to 50° Storage Temperature: - 20° to 60° Operating Humidity: 5% to 85% (non-condensing) |
Security & Payment
- PCI PTS 6.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Contactless Payment Scheme:
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy
- Other local payment schemes are optional
- Mastercard TQM
- SonyFelica
Safety
- CE/FCC/CB/cTUVus
- ROHS/WEEE/REACH
- Privacy screen protector
- Water resistant printer cover
- Visual impaired accessory
- Swivel stand
