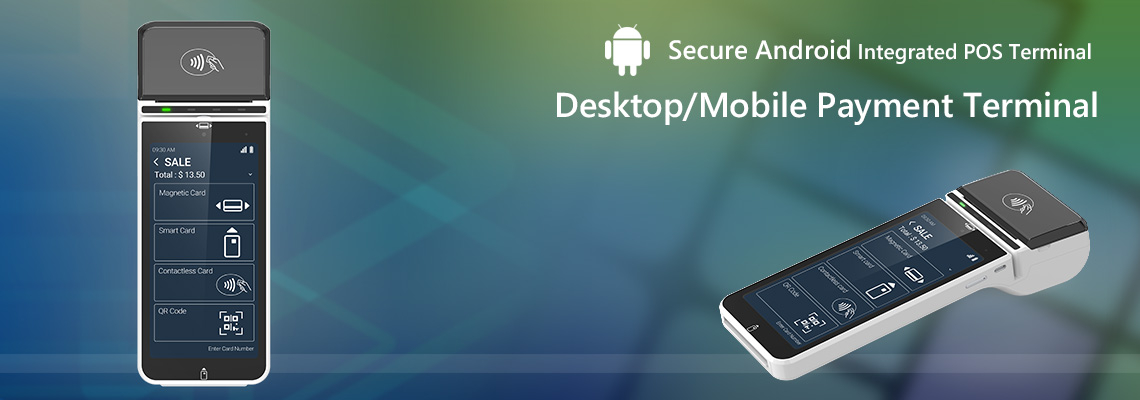

6" Smart POS Terminal (PCI6/Android12)
• Powered by Secured Android 12
• PCI PTS 6.x SRED
• Qualcomm QCM2290 quad-core 64bit
• Compact, sleek and light, perfect for on –the- go
• 6” high resolution touchscreen
• LTE/WiFi/Bluetooth
• Camera: Front 5MP (FF), Rear 5MP (AF)
• Rear Camera upgradable to 8MP
• Big power capacity for full day operation
#retail
#restaurant
#hypermarket
#grocerystore
#foodcourt
#restaurant
#hypermarket
#grocerystore
#foodcourt
| CPU |
Qualcomm ARM Cortex-A53 quad-core 64bit(QCM2290) up to 2.0GHz Secure: MAXIM ARM Cortex-M3 SoC |
| OS |
Android 12 |
| Memory |
2 GB SDRAM +16 GB eMMC Optional - 3 GB SDRAM +32 GB eMMC - 4 GB SDRAM +64 GB eMMC |
| Display |
6” 1440x720 pixel TFT display Capacitive touch screen display Auto-adjustable brightness (Optional) |
| PINPad |
Touch PINPAD |
| Printer |
48 mm printing width with tear bar 40 mm diameter paper roll |
| SAM/SIM card slot |
1 SIMs + 1 SAMs (Nano type card) |
| MSR |
ISO 7811 compliant 3-track MSR |
| SCR |
ISO7816-1/2/3 asynchronous T=0, T=1 SLE4442 Memory Card Support 2 SAM slots |
| CTLS | ISO14443 type A/B ISO18092 (NFC) MiFare Felica |
| Barcode Reader/Camera | Front: 5MP Fix-Focus camera Rear: 5MP Auto-Focus camera, flash LED *8MP camera (Optional) Support 1D/2D barcode scanning (Optional) |
| Wireless Communication |
WI-FI 802.11 a/b/g/n/ac (2.4GHz & 5GHz) Bluetooth 5.0 Dual Mode 4G LTE (support 2 SIMs) |
| Peripheral Ports |
USB Type C Connector x 1 Charge port x1 (pogo pin type) |
| Power Supply |
DC 5V/2A |
| Battery capacity |
7.6V / 2500mAH rechargeable Li-ion battery |
| Dimension (mm) |
228(L) x84.6 (W) x 45.6(H) mm |
| Environmental | Operating Temperature: 0°C to 50°C Battery Charging Operating Temp.: 0°C to 45°C Storage Temperature: - 20°C to 60°C Operating Humidity: 5% to 85% (non-condensing) Support IPx4 rating |
Security & Payment
- PCI PTS 6.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy,Unionpay
- Mastercard TQM
- Sony Felica
Safety
- CE/FCC/CB/cTUVus
- ROHS/WEEE/REACH
- Power adapter 5V/2A
- USB cable (type C to type A)
- Magnetic Pogo charging cable (option)
- PD adaptor (Optional for Pogo charger)
- Rechargeable battery
- Quick user guide/safety instruction
- Privacy screen protector (option)
- Visual impaired accessory (option)
| # | Description | File Name |
|---|---|---|
| 1 | xCL_AT-160-E | DOWNLOAD |
