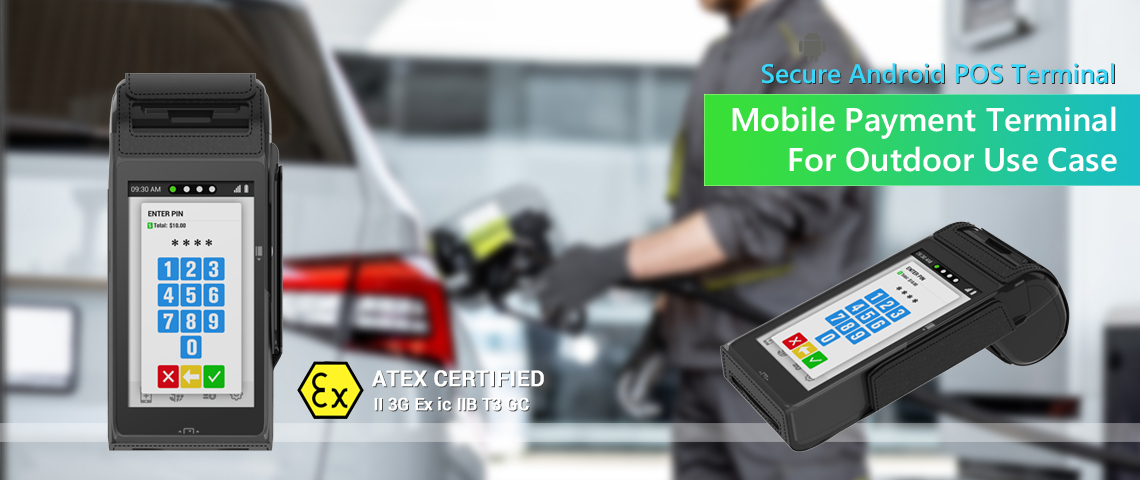

5" Handheld Outdoor Payment Terminal (PCI5/Android
xCL_AT-150-R3-ATEXII Mobile Payment Terminal leverages secured Android platform and XAC PCI PTS 5.x secure payment modules in a compact design to process magnetic card swiping, EMV, PIN entry, and NFC/contactless transactions, connecting with Wi-Fi and 3G/4G to provides safe mobile communications for hazardous area workers.
#Gas Station #Safety and protection #Explosive Atmospheres
CPU | ARM Cortex-A7 Quad Core 1.1GHz |
OS | Android 8 |
Memory | 1GB DDR3 SDRAM / 8GB eMMC Memory |
Display | 5" TFT (1280x720) with capacitive touch display |
Encryption PinPad | TOUCH PINPAD |
Card slot | SAM*2 / SIM (Optional for 4G feature) |
Magnetic Card Reader | ISO 7811 compliant. 3-track MSR |
Smart Card Reader | ISO7816-1/2/3 compliant asynchronous card protocol T=0, T=1 |
Contactless Card Reader | - ISO14443 type A/B, Mifare, |
- PayPass, PayWave, DPAS, ExpressPay, UnionPay | |
- NFC (ISO18092) | |
Audio | Mono Speaker |
Printer | 48mm width printer with tear bar |
Barcode Reader (Optional) | Support 1D/2D barcode scanning |
Wireless Communication | - WI-FI 802.11 a/b/g/n |
- Bluetooth 4.2 BLE | |
- 4G wireless, SIM x2 (option) | |
Peripheral Ports | - USB type C * 1 |
Security | - Algorithm: 3DES, AES, RSA, FPE(AES FFX) |
- Key management: MK/SK, DUKPT | |
- TLS 1.2 support | |
- Secure program and parameter load | |
Environmental | - Operating Temperature: 0°C to 50°C |
- Battery Charging Operating Temp.: 0°C to 45°C | |
- Storage Temperature: - 20°C to 55°C | |
- Operating Humidity: 5% to 85% (non-condensing) | |
- ATEX certified: II 3G Ex ic IIB T3 GC | |
Power Supply | - Switching Power Adapter 5V/2A |
- Li-Ion Battery | |
Power | 5V / 2A DC |
Dimension (mm) | 186(L) x86 (W) x 65(H) mm |
* Terminal body thickness 38mm |
- PCI PTS 5.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Mastercard TQM (IFM/PCD)
- PayPass, PayWave, DPAS, ExpressPay, UnionPay
- CE
- CB
- FCC
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Mastercard TQM (IFM/PCD)
- PayPass, PayWave, DPAS, ExpressPay, UnionPay
- CE
- CB
- FCC
# | Description | File Name |
---|---|---|
1 | xCL_AT-150-ATEXII Product Datasheet | DOWNLOAD |
