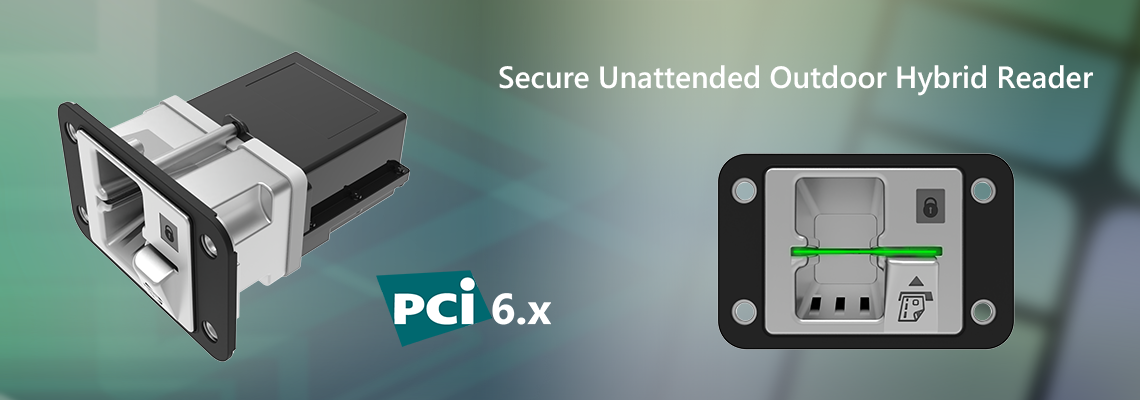

Secure Unattended Outdoor Hybrid Reader (PCI6)
XAC’s manual insertion Secure Hybrid Reader (P96) is certified by PCI PTS 6.X. The P96 protects cardholder data through its physical and logical Security design and is ideal for most unattended payment applications like gas pumps, parking meters, vending machines, kiosks, and a variety of other solutions.
#vendingmachine #bank #ATM #parkingmeter #gaspump #unattendedservice #ticketing #transportation
#cafeteria #gamimg #kiosk
#cafeteria #gamimg #kiosk
| CPU | 32-bit ARM Cortex M33 Processor |
| OS | RTOS |
| Magnetic Stripe Reader | - ISO 7811, AAMVA compliance - 3 tracks MSR reading capability |
| Smart Card Reader | - EMV L1 approval ( T=0 & T=1 type) - Support 2 SAMs (optional) |
| LED | Tricolor LED for different device status |
| Extension Port | - USB or RS232 |
| Sensors | - Card-Insertion Sensor - Card-Ready Sensor - Card-Lock Sensor - Unlock sensor - Foreign-Object sensor |
| Security | - PCI PTS 6.X SRED - Algorithm: 3DES, RSA - Key Management: DUKPT - Mutual Authentication - Message Encryption - PCI compliant Load Key process - Card slot shutter design - Anti-Skimming/Shimming design |
| Environmental | - Operating Temperature: -30°C to 70°C - Storage Temperature: - 30°C to 70°C - Operating Humidity: 5% to 95% (non-condensing) - IK09 impact resistance - IP rating: IP54 (front bezel) / IPx2 (rear) |
| Power | - 6. 5V~ 1 4 V@500mA DC (RS232) - 5V@500mA DC (powered by USB) |
| Dimension (mm) | 71(L)×108.6(W)×120.8 (D) mm |
- PCI PTS 6.x
- EMV Contact L1/L2
- CE EMC
- FCC
- CB
- UL1238 Class 1 Division 2
- ROHS/WEEE/REACH
- EMV Contact L1/L2
- CE EMC
- FCC
- CB
- UL1238 Class 1 Division 2
- ROHS/WEEE/REACH
-12V Power adapter for RS232 (Optional)
-Foreign object cleaning kit (Optional)
-Foreign object cleaning kit (Optional)
| # | Description | File Name |
|---|---|---|
| 1 | P96 | DOWNLOAD |
