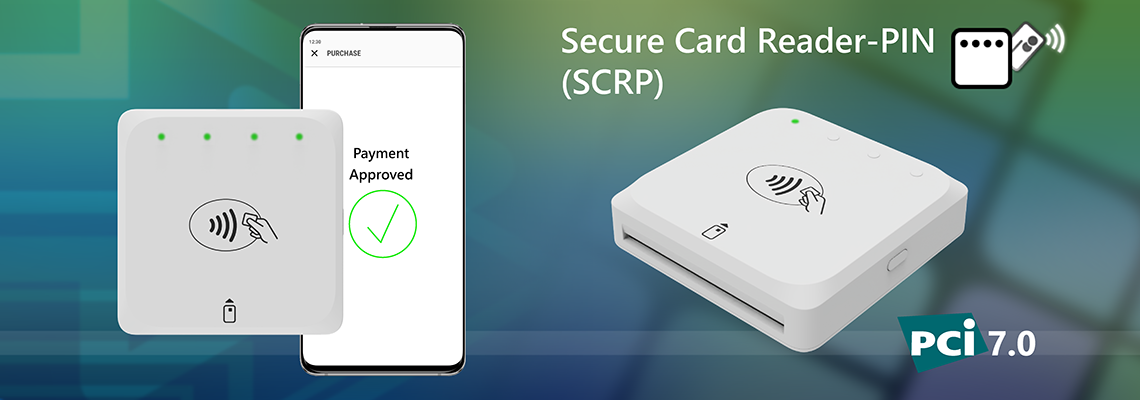

Mobile SCRP
- PCI PTS/SCRP 7.x
- Certified EMV Contact & Contactless readers
- With rechargeable battery
- Bluetooth communication
- Compact and portable
- Optional charging cradle
#gaspump #parkingmeter #vendingmachine #billpaymentkiosk #hospital
| CPU | Cortex M3 SoC |
| OS | RTOS |
| Smart Card Reader | - EMV Contact L1 approval (T=0 & T=1 type) - EMV Contact Level 2 - SLE4442 Memory Card |
| Contactless Card Reader | - Physical LED x4 - ISO14443 type A/B - NFC (ISO18092) - Mifare - Felica |
| Communication | - Bluetooth 4.2 BLE |
| Peripheral Ports | - USB type C *1 |
| Security | Algorithm: 3DES, AES, RSA Key management: MK/SK, DUKPT Secure Code Update Architecture |
| Environmental | Operating temperature: 0°C to 50°C Battery Charging Operating Temp.: 0°C to 45°C Storage temperature: - 20°C to 60°C Operating humidity: 5% to 95% (non-condensing) |
| Power Supply & Battery | Powered by 5V / 1A Built-in rechargeable battery 3.8V/680 mAh |
| Dimension (mm) | 69 (L) x 69 (W) x 16.5 (H) mm |
Security
- PCI PTS/SCRP 7.x
Regulatory
- CE
- FCC
- PCI PTS/SCRP 7.x
Regulatory
- CE
- FCC
Accessory
- USB 2.0 type C to type A cable
- Optional power adaptor (5V/1A)
- USB 2.0 type C to type A cable
- Optional power adaptor (5V/1A)
