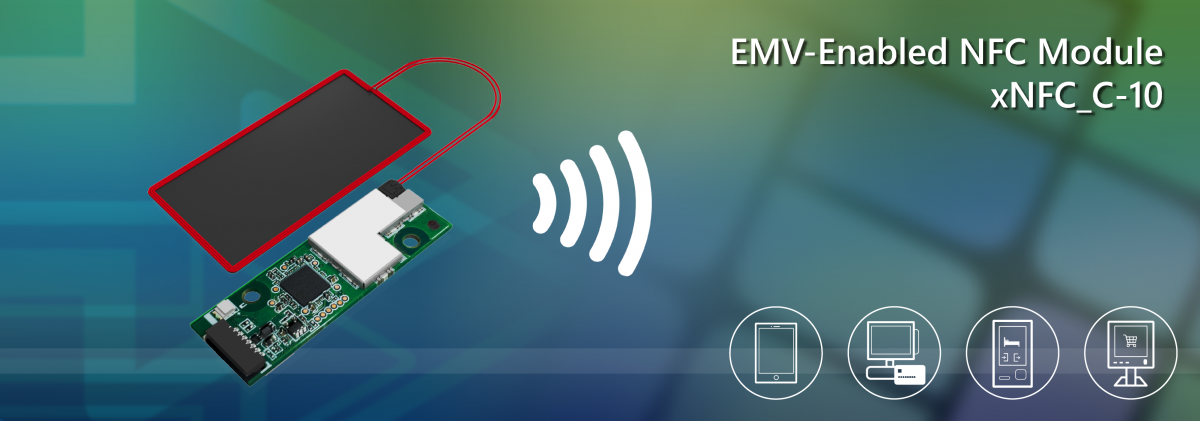

EMV Enable NFC Reader Module
xNFC_C-10 is a compact NFC module with customizable antennas, allowing for quick integration into POS systems and kiosks. This upgrade enables the systems to support contactless payments while significantly reducing the substantial costs associated with hardware development and certification. These benefits make the xNFC_C-10 an ideal choice for enhancing payment functionalities.
#retailkiosk #pos #hospitalkisok #smartdevice
| CPU | Cortex M33 SoC |
| Standard | - ISO 14443 type A/B - NFC: ISO 18092 - Mifare - Apple VAS Compliant - Google Smart Tap Compliant |
| Interface | - USB 2.0 full speed - Support CCID |
| Firmware | - XAC Saturn Platform SDK - None payment supported |
| Features | - Audible buzzer (Optional) - Dual color staus LED (Optional) - External board for 4 status LED (Optional) - Device firmware programmable with upgrade capability - Data Encryption: AES, TDES, RSA, ECC (optional) - Reserved FW upgrade capability for future NFC payment (MPOC) - Support NFC reader mode only |
| Antenna | - 13.56MHz - Wire type (fixed on sticker paper) - Reading distance up to 4 cm |
| Power Requirement | - 5VDC (+/-5%) @1000mA |
| Dimension | - NFC Controller Board: 55.0 x 18.0 x 3.8mm - NFC Antenna: 60 x 30 mm |
| Environmental | - Operating temperature: 0°C to 50°C - Storage temperature: - 20°C to 60°C Operating humidity: 5% to 95% (non-condensing) |
- CE complaint
- FCC module certificate compliant
- Local module certificates by request
- No payment certification
Note: Future NFC payment (MPOC) can be supported by upgrading FW.
- FCC module certificate compliant
- Local module certificates by request
- No payment certification
Note: Future NFC payment (MPOC) can be supported by upgrading FW.
| # | Description | File Name |
|---|---|---|
| 1 | xNFC_C-10_Product Datasheet_2025 | DOWNLOAD |
