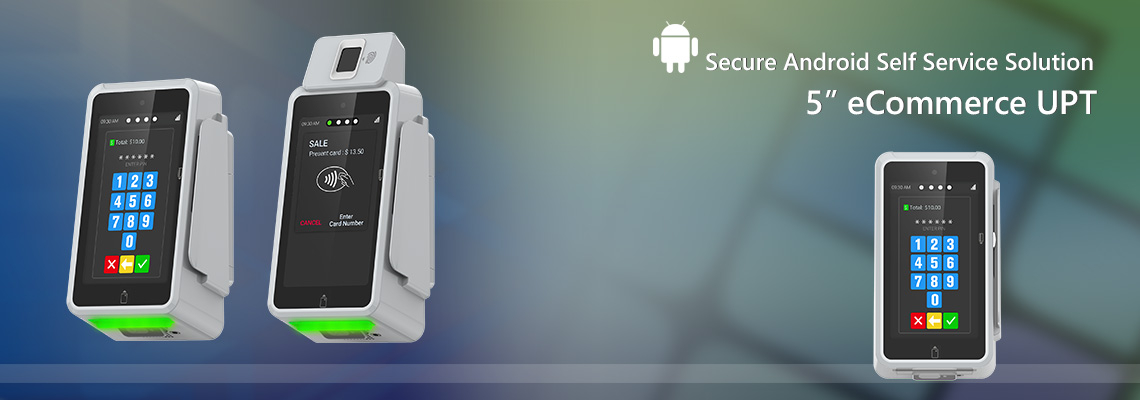

5” Smart UPT (PCI6/Android12)
• All in one UPT device
• PCI PTS 6.x certified
• Latest E6 platform with Secure Android 12 OS.
• Built-in industrial standard barcode reader and wireless connectivity.
• xCL_AT-150U can provide self-service kiosk and Vending machine functions with COTS peripherals of touch display and printer module
#kiosk
#hospitality
#ticketing
#vendingmachine
#parkingmeter
#drivethrough
#bank
#hospitality
#ticketing
#vendingmachine
#parkingmeter
#drivethrough
#bank
| CPU/SoC | Qualcomm ARM Cortex-A53 quad-core 64bit(QCM2290)up to 2.0GHz Secure:MAXIM ARM Cortex-M3 SoC |
| OS | Android 12 |
| Memory |
2 GB SDRAM +16 GB eMMC Optional - 3 GB SDRAM +32 GB eMMC - 4 GB SDRAM +64 GB eMMC |
| Display |
5” 1280x720 full color TFT IPS Capacitive Touch (PIN Entry) |
| MSR |
ISO 7811 compliant 3-track MSR |
| SCR |
ISO7816-1/2/3 asynchronous T=0, T=1 Landing type card slot with light guide Support up to 4 SAM slots (Optional) |
| CTLS | ISO14443 type A/B ISO18092 (NFC) MiFare Sony Felica |
| Barcode Reader/Camera | 5MP Auto-Focus front facing camera 5MP Fix-Focus rear camera with aiming and flash LED Support 1D/2D barcode scanning (Optional) 8MP camera (Optional) |
| Wireless Communication | Built-in Wifi 802.11 a/b/g/n/ac (2.4GHz & 5GHz) Bluetooth 5.0 Dual mode 4G LTE (built-in antenna) |
| Fingerprint Module (AT150U Pro) |
FBI PIV certified Sensing area: 12.8mm x 18mm |
| Peripheral Ports | USB2.0-C x1 COM RJ12 x1 Optional Extension Hub USB2.0-A x2 Ethernet 10/100 RJ-45 x1 MDB Slave x1 |
| Power Supply |
12V~45V input Host wake-up on card insert (Optional) |
| Dimension (mm) | AT150-U: 166 (L) x 93(W) x 55(D) mm AT150-U Pro: 201(L) x 93(W) x 55(D) mm |
| Weight (gm) |
~350g |
| Environmental | Operating Temperature: - 20°C to 60°C Storage Temperature: - 40°C to 80°C Operating Humidity: 5% to 95% (non-condensing) |
Security & Payment
- PCI PTS 6.x with SRED
- GBIC, and CC compliant
- EMV Contact L1 & L2
- EMV Contactless L1
- Contactless Payment Scheme:
- PayPass, PayWave, DPAS, ExpressPay, Quickpass, JSpeedy
- Other local payment schemes are optional
- Mastercard TQM
- SonyFelica
Safety
- CE/FCC/CB/cTUVus
- ROHS/WEEE/REACH
- IK08
- IP65
- High durability weather proof UV rated plastic
- USB display dongle (Option for Android 12)
- Drive 2nd touch display to support
- Drive 2nd touch display to support
● ECR POS/KISOK/Vending Machine
Customer Facing Touch Display
